SLITTING LINE
TLS 3-20X2200MM SLITTING LINE

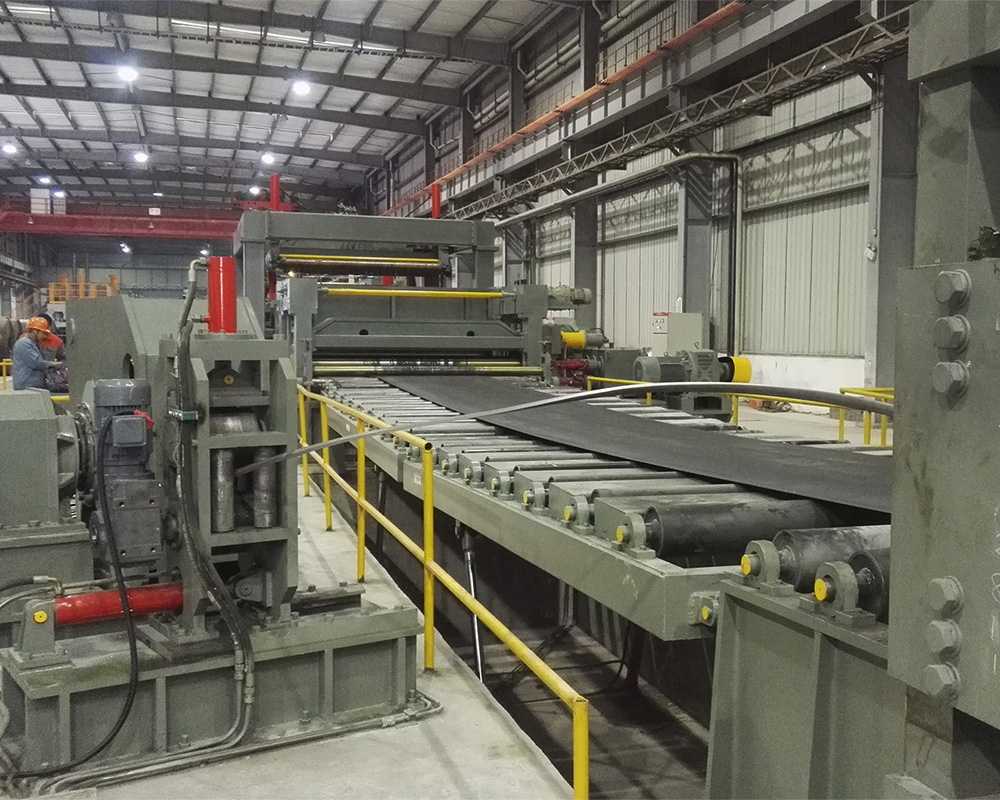

SINOFORM TLS series HR coil slitting line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for the application of all kinds field.It is consists of uncoiler, feeder, pinch, pre-leveler, cropping shear, slitter, scrap winder and recoiler, etc. It is used for slitting the wide raw coil into narrow strips in order to prepare material for subsequent processes as milling, pipe welding, cold forming, punch forming, etc. Moreover, this line can also slit various non ferrous metal coils by changing slitting tools of different materials.
This line is reasonable in layout, easy operation, high level of automation, high productivity
The machine performance has reached the international standard. This slitting line series coil thickness range can be from 3.0mm to 20.0mm and coil width can be from 900mm to 2200mm,all these size steel coils are produced with large output, best quality and high precision.Our customized machines are also can be used for different processed material and meet nearly all applications.

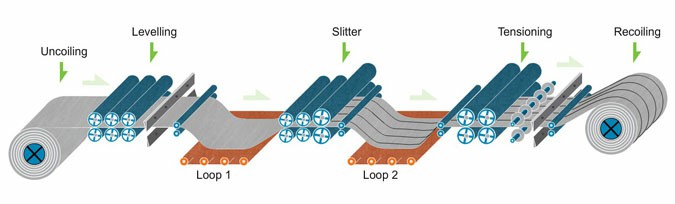

FLOW CHART OF SLITTING LINE
VIDEO:
TECHNICAL DATA:
| TLS 3-20X2200MM SLITTING LINE | |||
| Model | TLS12X2200 | TLS16X2200 | TLS20X2200 |
| Coil Thickness(mm) | 3.0-12.0 | 4.0-16.0 | 5.0-20.0 |
| Coil Width(mm) | 900-2200 | 900-2200 | 900-2200 |
| No. of Strips | 2-7 | 2-5 | 2-3 |
| Line Speed(m/min) | 0-30 | 0-25 | 0-20 |
| Coil Weight(T) | 35 | 35 | 35 |
| Finish Strip Width(mm) | ≥80 | ≥100 | ≥150 |
| Occupied Area(m) | 35X11 | 38X11 | 56X11 |
| Power(kw) | 480 | 650 | 900 |
Any query please feel free to contact us
SINOFORM team will provide you complete technical solution
