INTRODUCTION:

This line is used for coil with different specifications, through uncoiling-slitting-recoiling to needed width coil for for all kinds of application ie.tube line .stamping line etc.

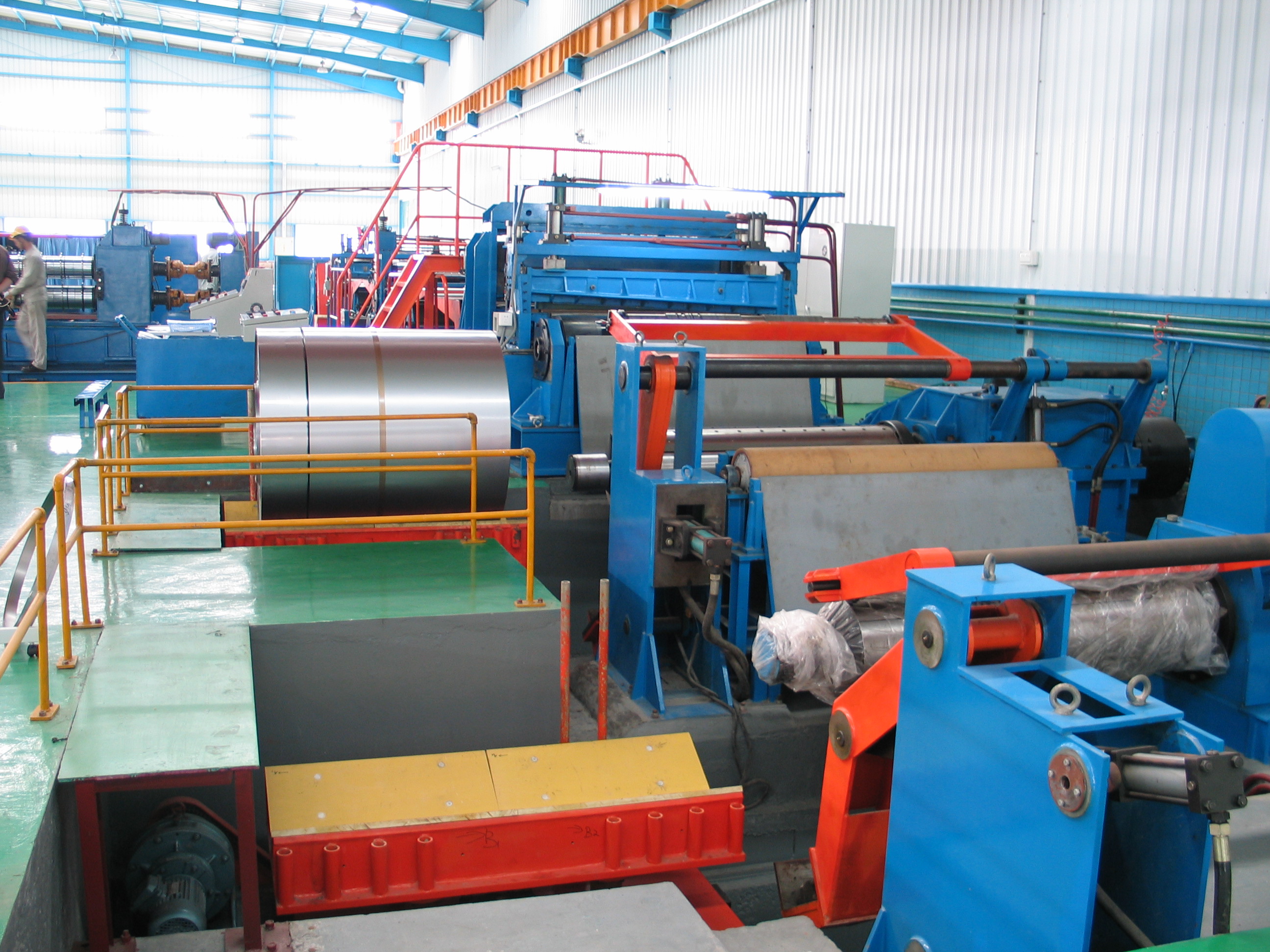

This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc. This line is composed of coil car, uncoiler, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiler, etc. as well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrate mechanical, electrical, hydraulic, pneumatic all together.

The machine performance has reached the international standard. This slitting line series coil thickness range can be from 0.3mm to 3.0mm and coil width can be from 600mm to 1600mm,all these size steel coils are produced with large output, best quality and high precision.Our customized machines are also can be used for different processed material and meet nearly all applications.

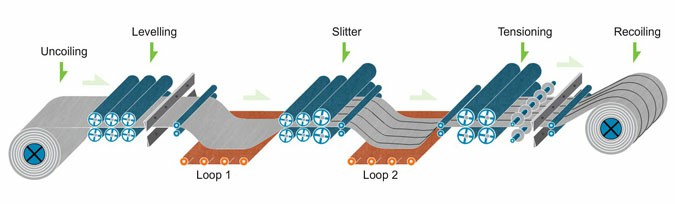

FLOW CHART OF SLITTING LINE
