CUT TO LENGTH LINE
THX 0.3-3X800-2000MM CUT TO LENGTH LINE
SINOFORM THS series This CR ,Galvanized,Stainless Coil Cut To Length line series is applicable to coils of various specifications. It is used for the producing flattened plate through the procedure of uncoiling, flattening and cutting to required width and length.
INTRODUCTION:

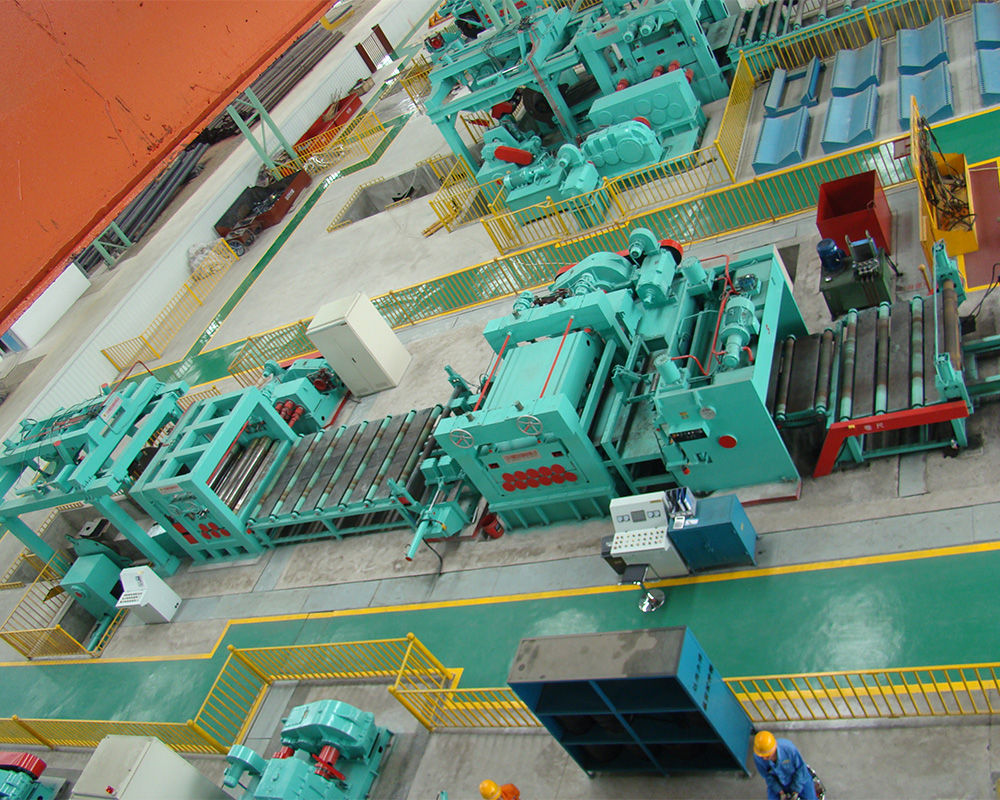

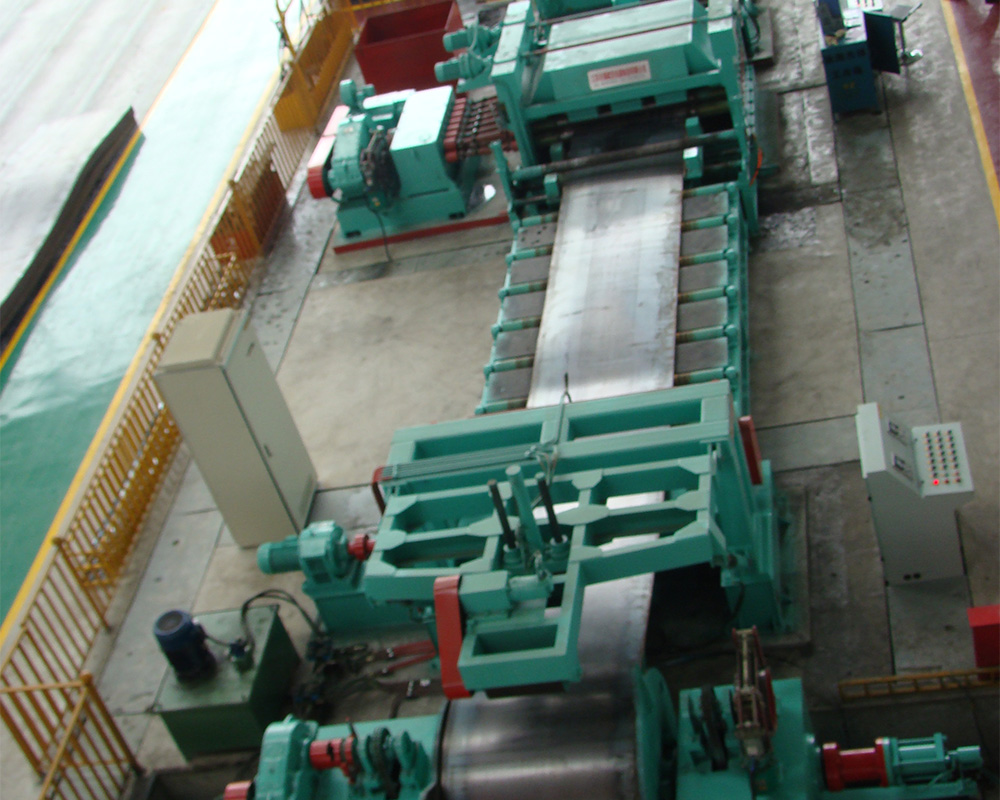

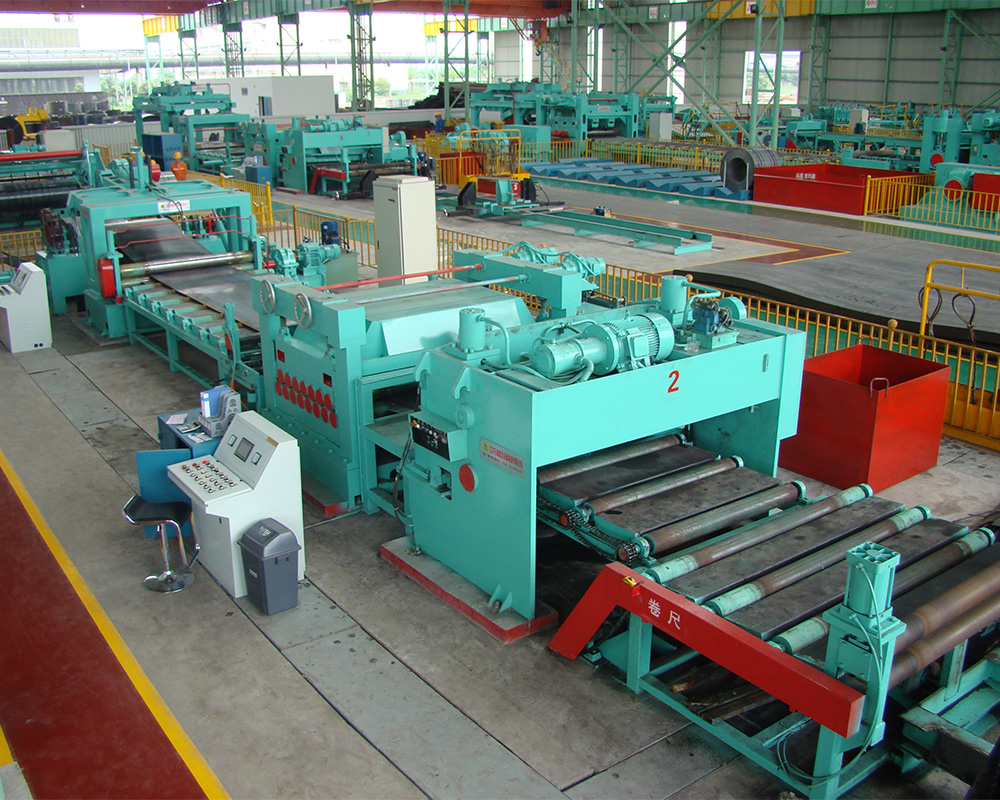

This line consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.
The machine performance has reached the international standard. This cut to length line series coil thickness range can be from 0.3mm to 3.0mm and coil width can be from 800mm to 2000mm,all these size steel coils are produced with large output, best quality and high precision.Our customized machines are also can be used for different processed material and meet nearly all applications.
VIDEO:
TECHNICAL DATA:
|
THX 0.3-3X800-2000MM |
|
|
Model |
THX 0.3-3X800-2000MM |
|
Material Type |
CR ,Galvanized,Stainless Coil |
|
Coil Thickness(mm) |
0.3-3.0 |
|
Plate Width(mm) |
800-2000 |
|
Cutting precision(mm) |
±3 |
|
Line Speed(m/min) |
10-80 |
|
Coil Weight(T) |
20 |
|
Finish Plate Length(mm) |
300-4000 |
|
Occupied Area(m) |
28X9 |
|
Power(kw) |
130 |
Any query please feel free to contact us
SINOFORM team will provide you complete technical solution
