CUT TO LENGTH LINE

THM 1-12X900-2200MM CUT TO LENGTH LINE

SINOFORM THM series This HR Cut to Length Line series is applicable to coils of various specifications. It is used for the producing flattened plate through the procedure of uncoiling, flattening and cutting to required width and length.

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

INTRODUCTION

INTRODUCTION:

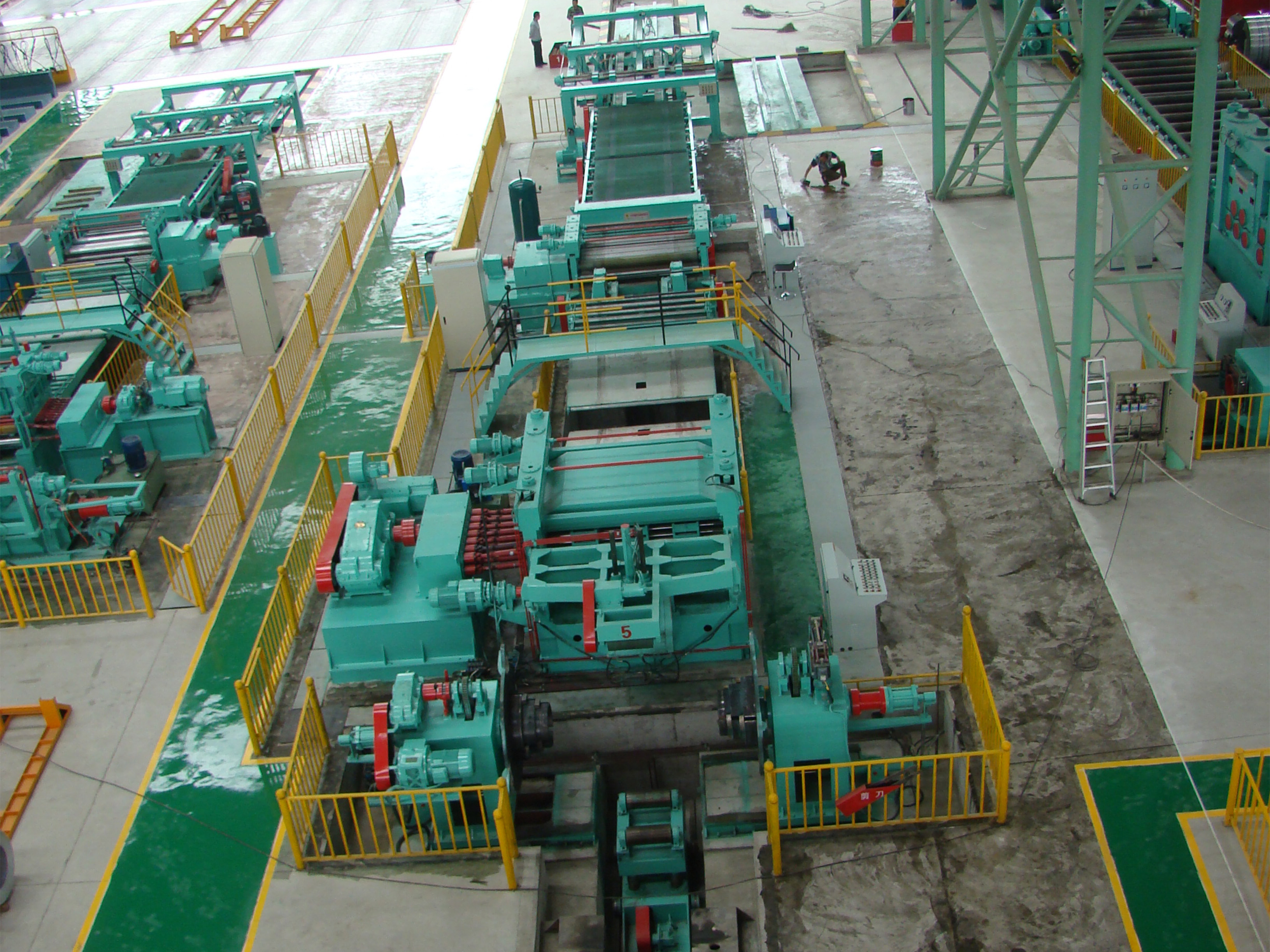

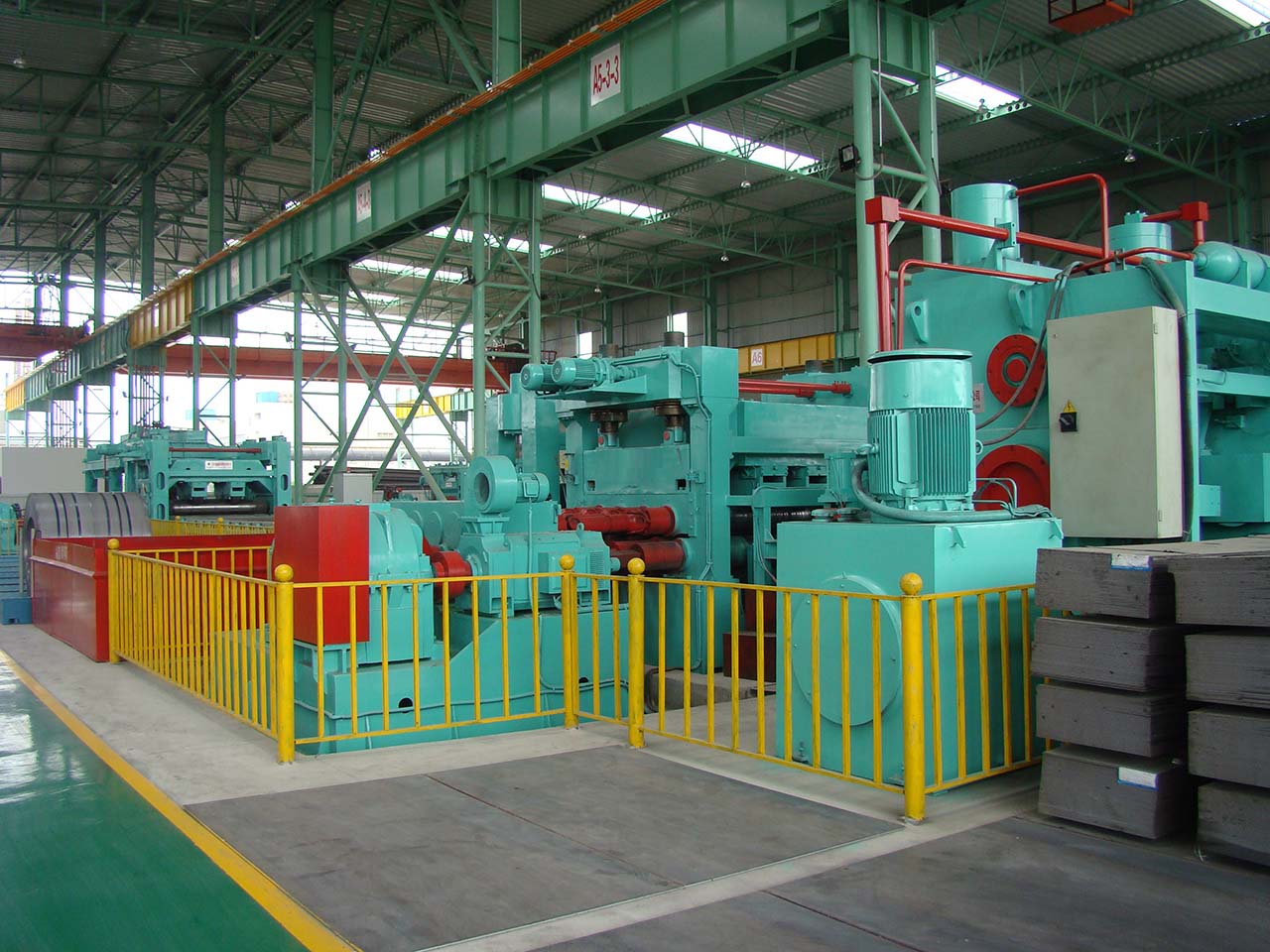

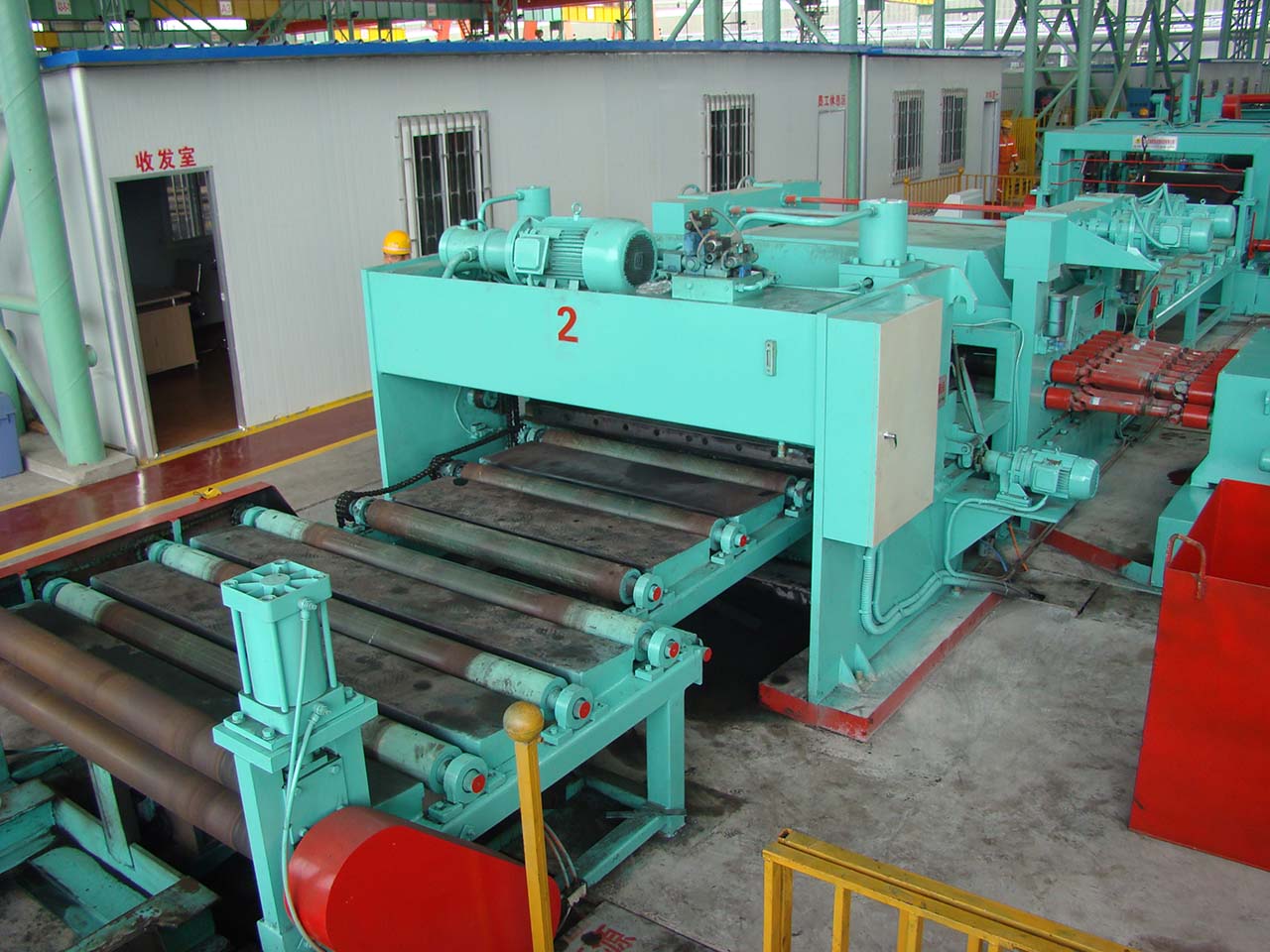

This line consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.

The machine performance has reached the international standard. This cut to length line series coil thickness range can be from 1.0mm to 12.0mm and coil width can be from 900mm to 2200mm,all these size steel coils are produced with large output, best quality and high precision.Our customized machines are also can be used for different processed material and meet nearly all applications.

VIDEO

VIDEO:

TECHNICAL DATA

TECHNICAL DATA:

THM 1-12X900-2200MM CUT TO LENGTH LINE
Model	THM6X2000	THM8X2000	THM12X2200
Coil Thickness(mm)	1.0-6.0	2.0-8.0	3.0-12.0
Plate Width(mm)	900-2000	900-2200	900-2200
Cutting precision(mm)	±1.0	±1.0	±1.0
Line Speed(m/min)	0-28	0-28	0-25
Coil Weight(T)	30	30	35
Finish Plate Length(mm)	1000-6000	1000-8000	2000-12000
Occupied Area(m)	26X9	28X9	35X10
Power(kw)	110	140	220
