DFT SQUARE TUBE FORMING TECHNOLOGY

LW 250x250-500x500

Sinoform LW series Direct Form To Square Tube Mill Line Pipe&Tube Line with the latest DFT forming technology. Only use one set of rollers can be continuously produced within a certain range size of square&rectangular steel tube, The forming and sizing rollers use one set of common combination roller and there is no need to change the rollers when producing different size of square tubes .The complete line is fully automatic. The motor adjusts the opening and closing, lifting and lowering of the rollers

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

INTRODUCTION

INTRODUCTION:

LW Series 250x250-500x500 Directly Forming to Square and Rectangular Tube Mill use one set of combined rollers can be continuously produced within a certain range of rectangular steel pipe, using the international advanced multi-radius combination molding process and high-frequency welding, forming by multi-channel symmetrical bending. It can be divided into small side bending, boardside bending, free bending at closed side, high frequency welding, produce the exact size and good quality pipe after sawing.Pipe&Tube Mill line diameter range from 250x250-500x500mm ,Wall thickness range from 4.0-20.0mm.

The complete line is fully automatic. The motor adjusts the opening and closing, lifting and lowering of the rollers for change different tube size.

GROUND TYPE ACCUMULATOR
DOUBLE BLADE FLYING CUTTING SAW

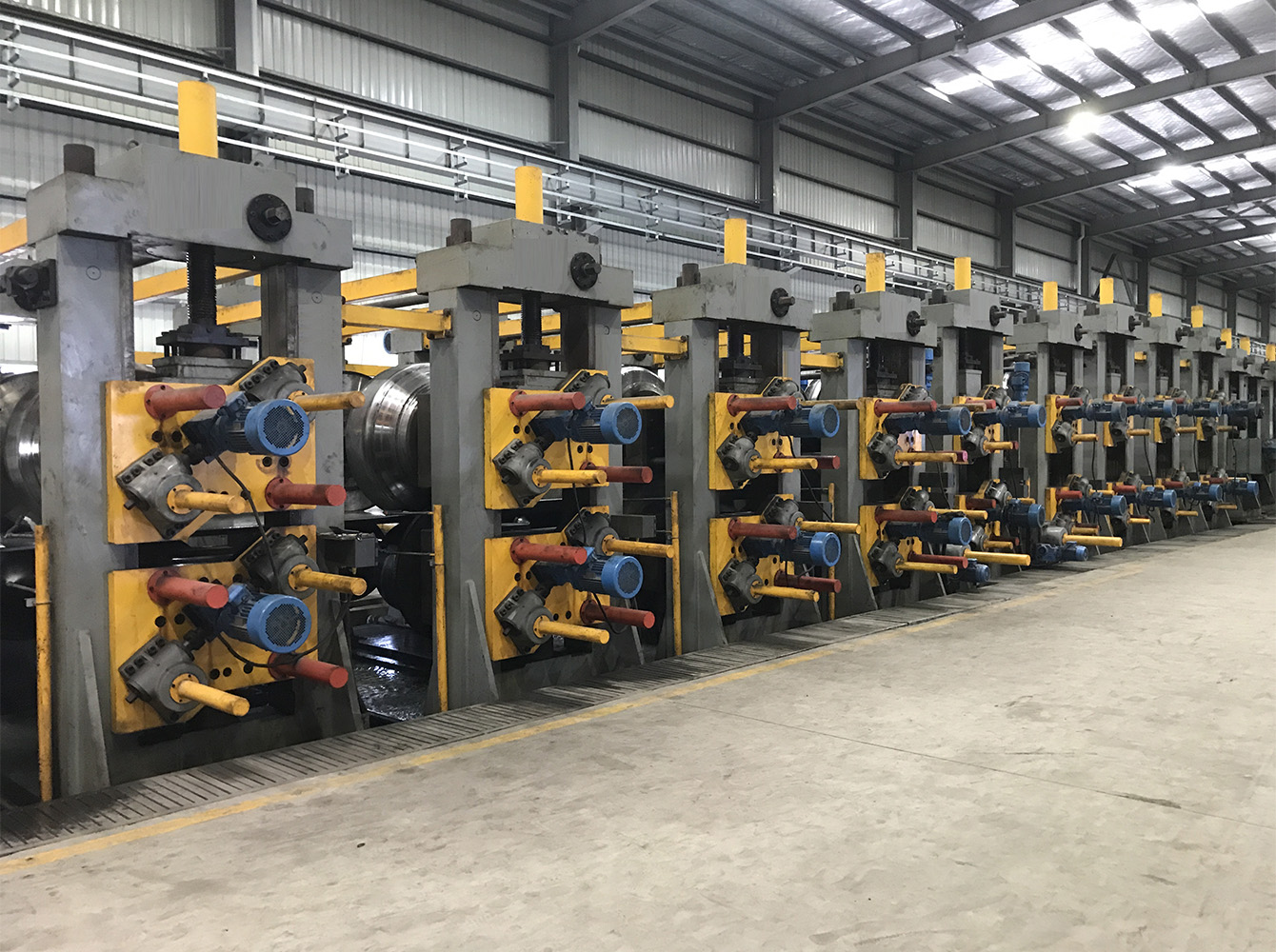

FORMING AND SIZING SECTION

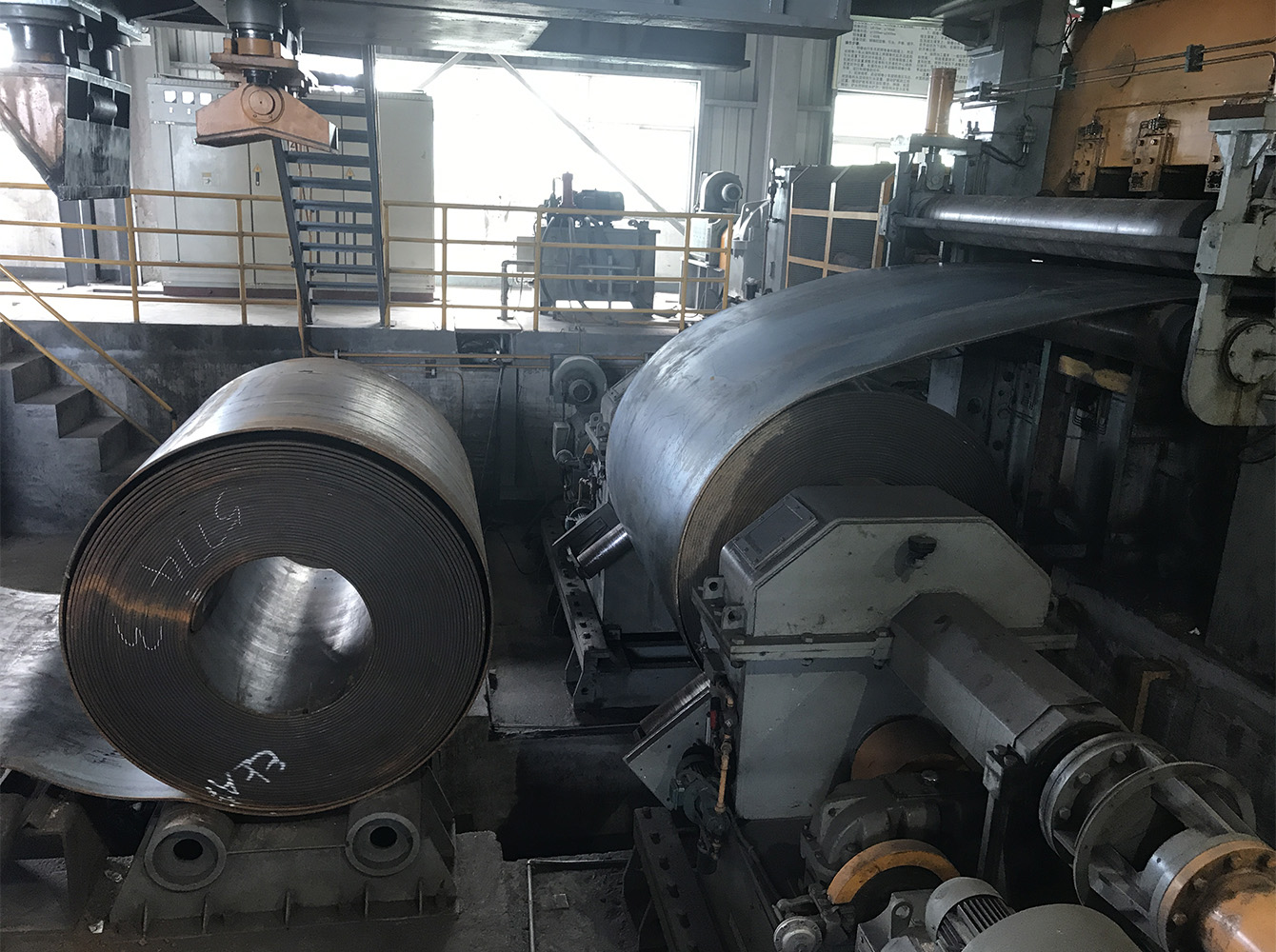

DOULBE HEAD HYDRAULIC UNCOILER

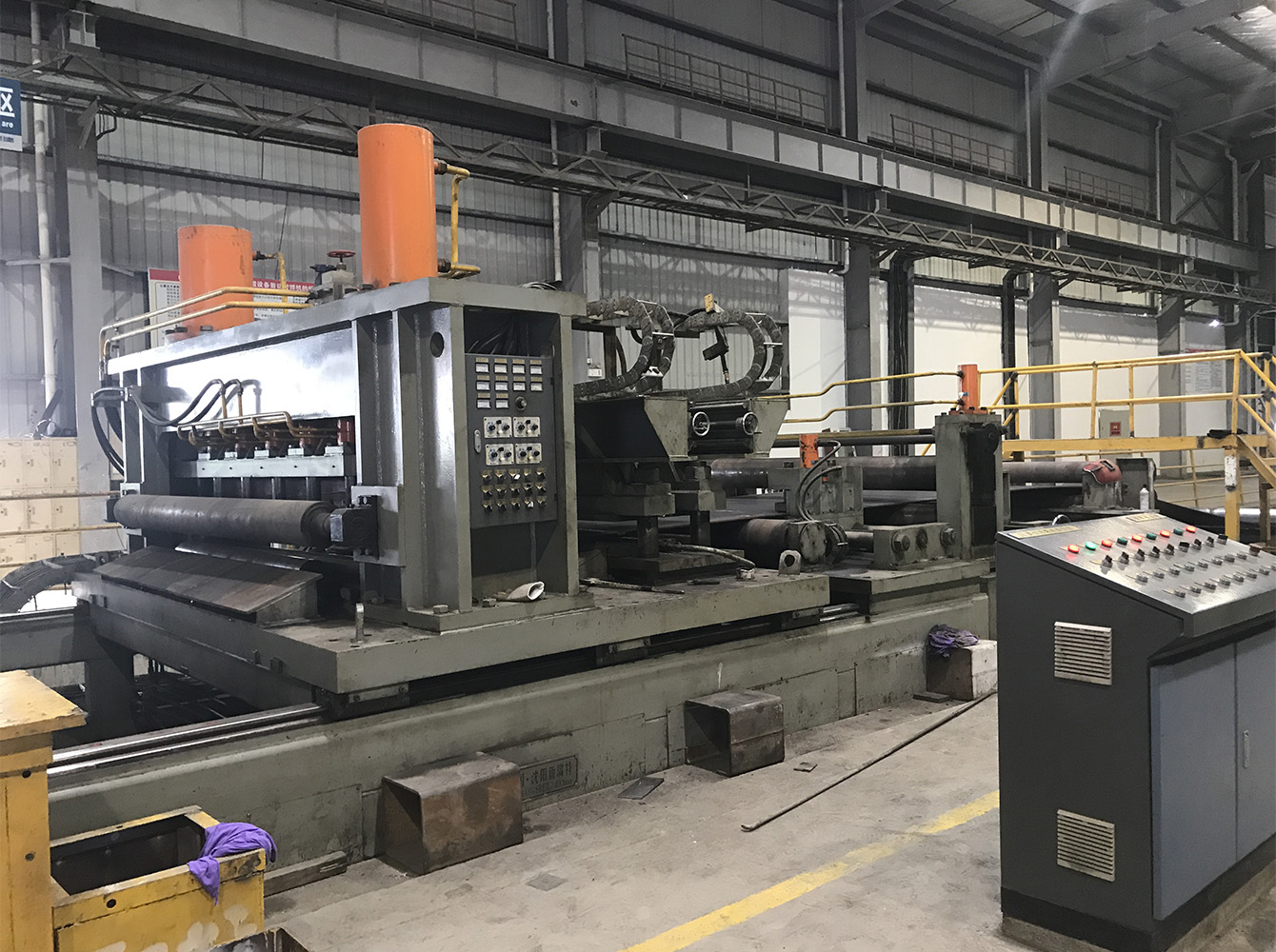

SHEARING AND END WELDING
HF WELDER

LINE COMPONENTS

LINE COMPONENTS：

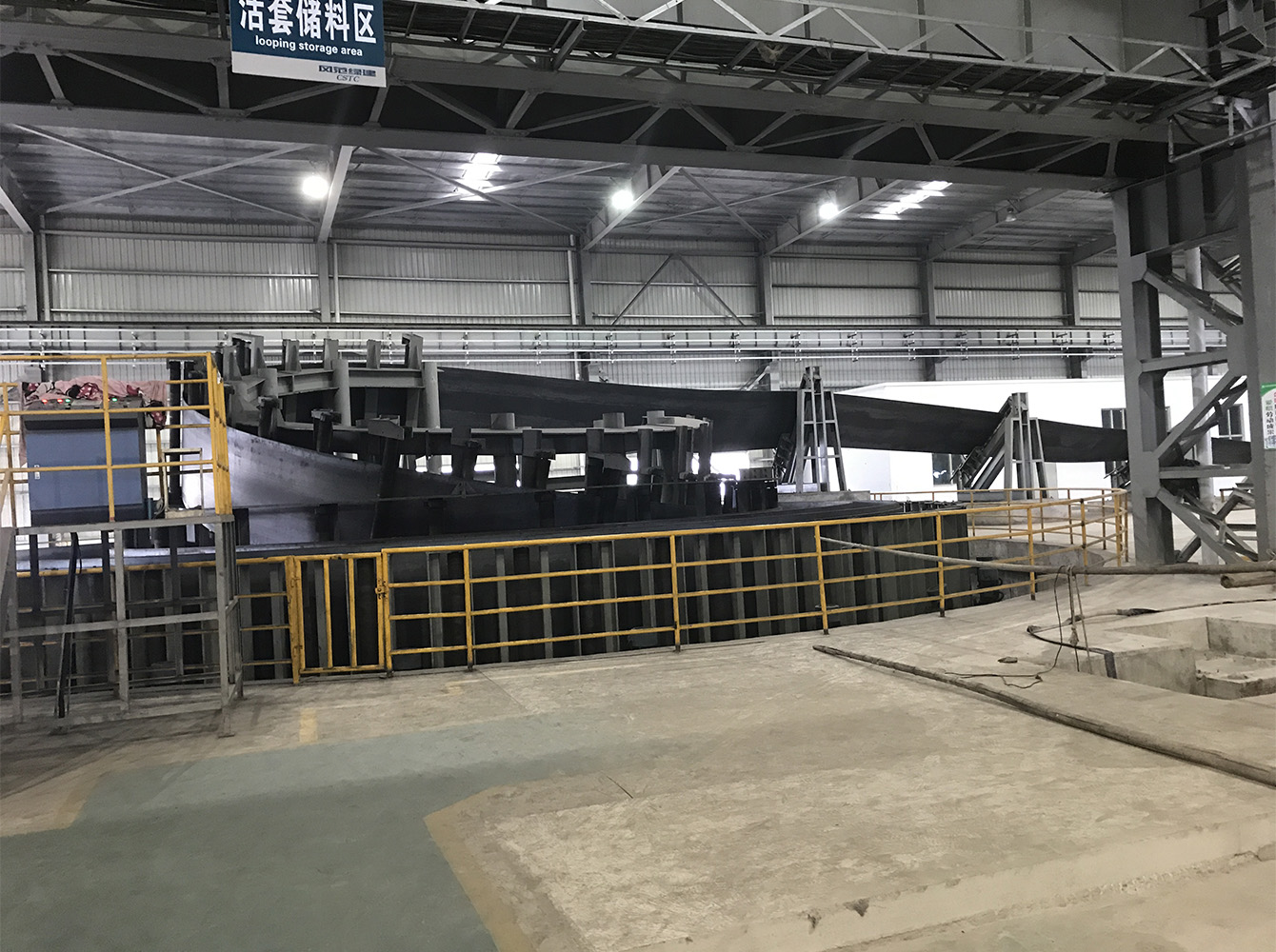

HORZIONTAL ACCUMLATOR

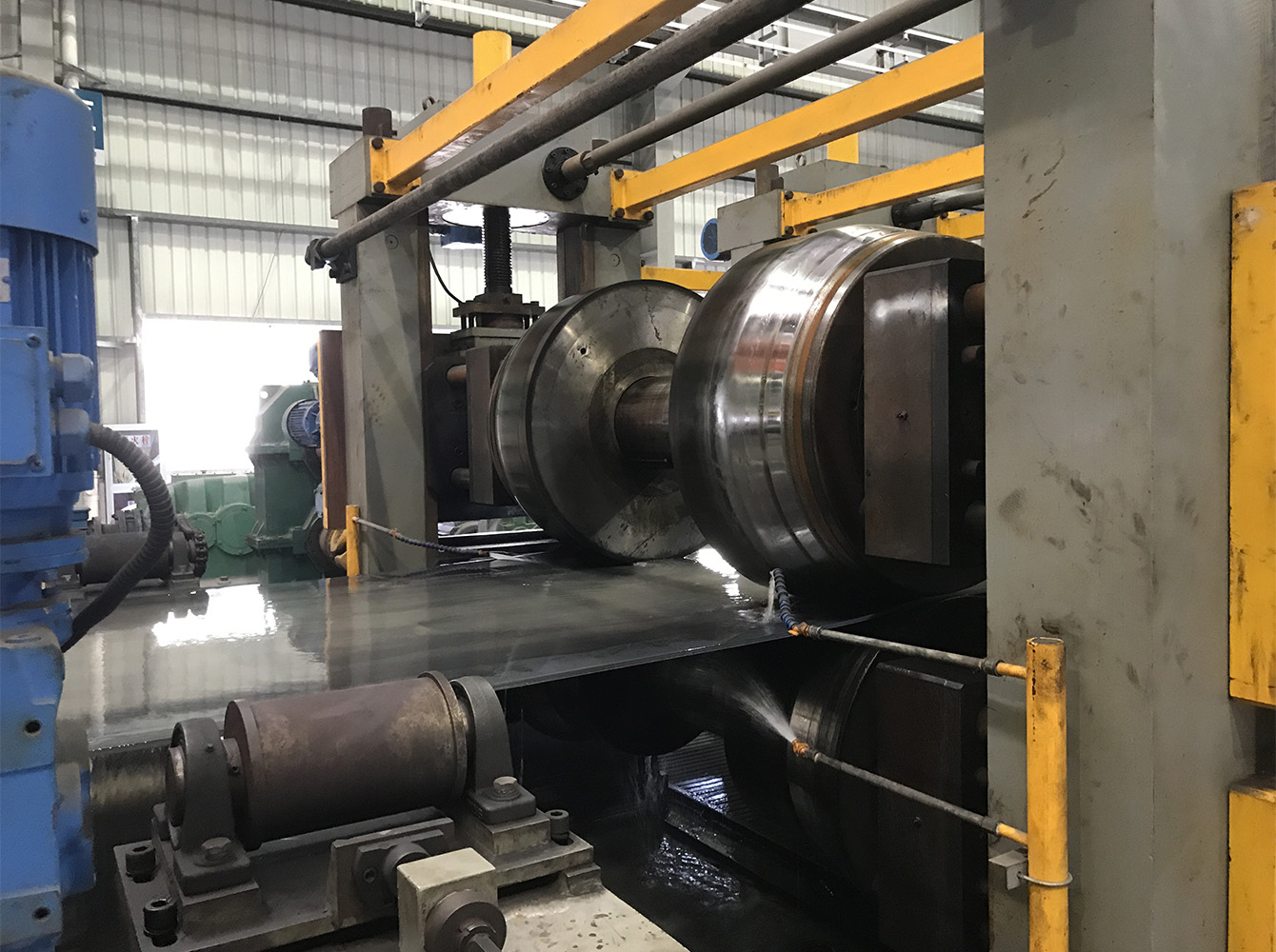

PRESS ROLLER

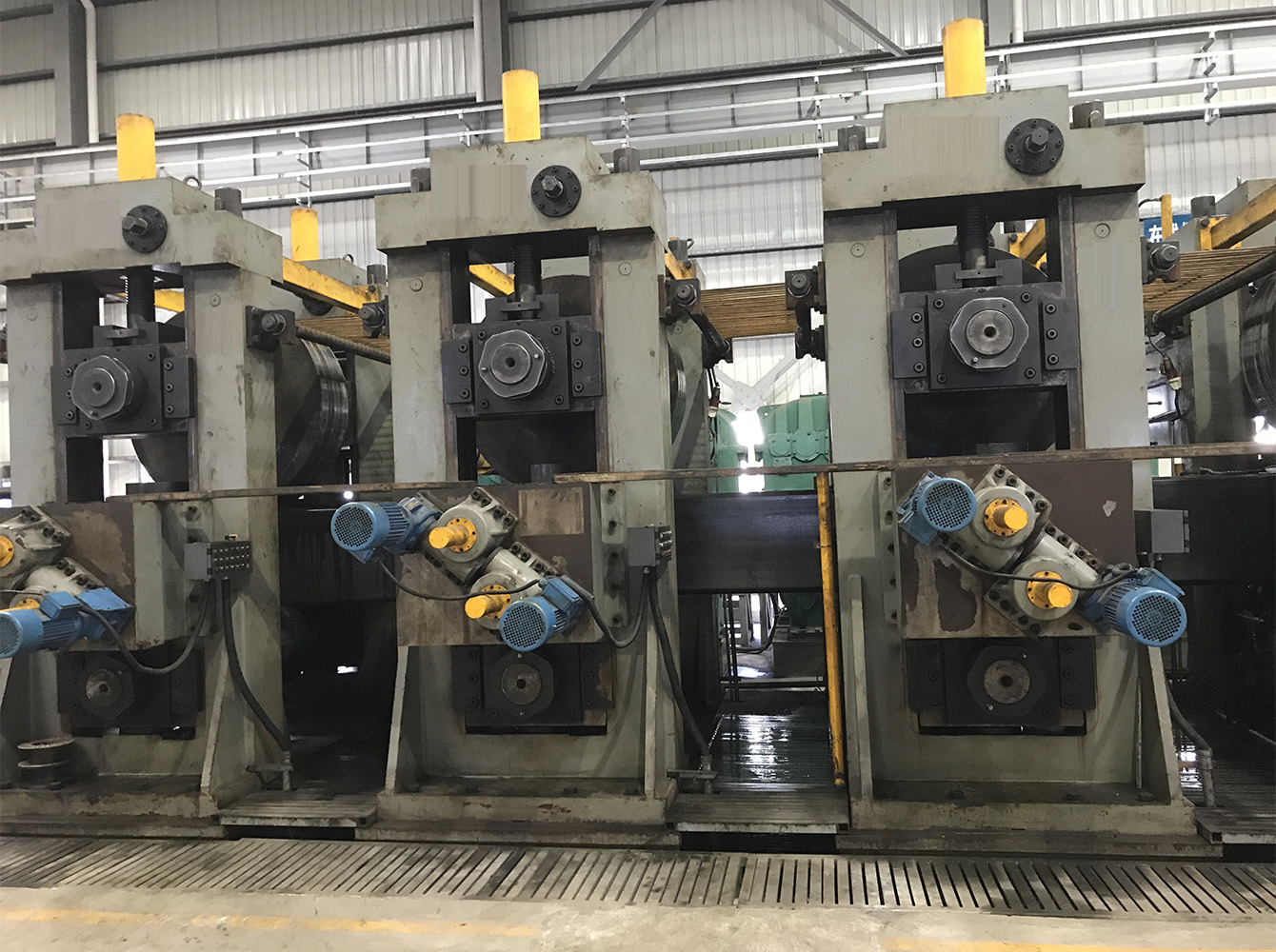

FORMING

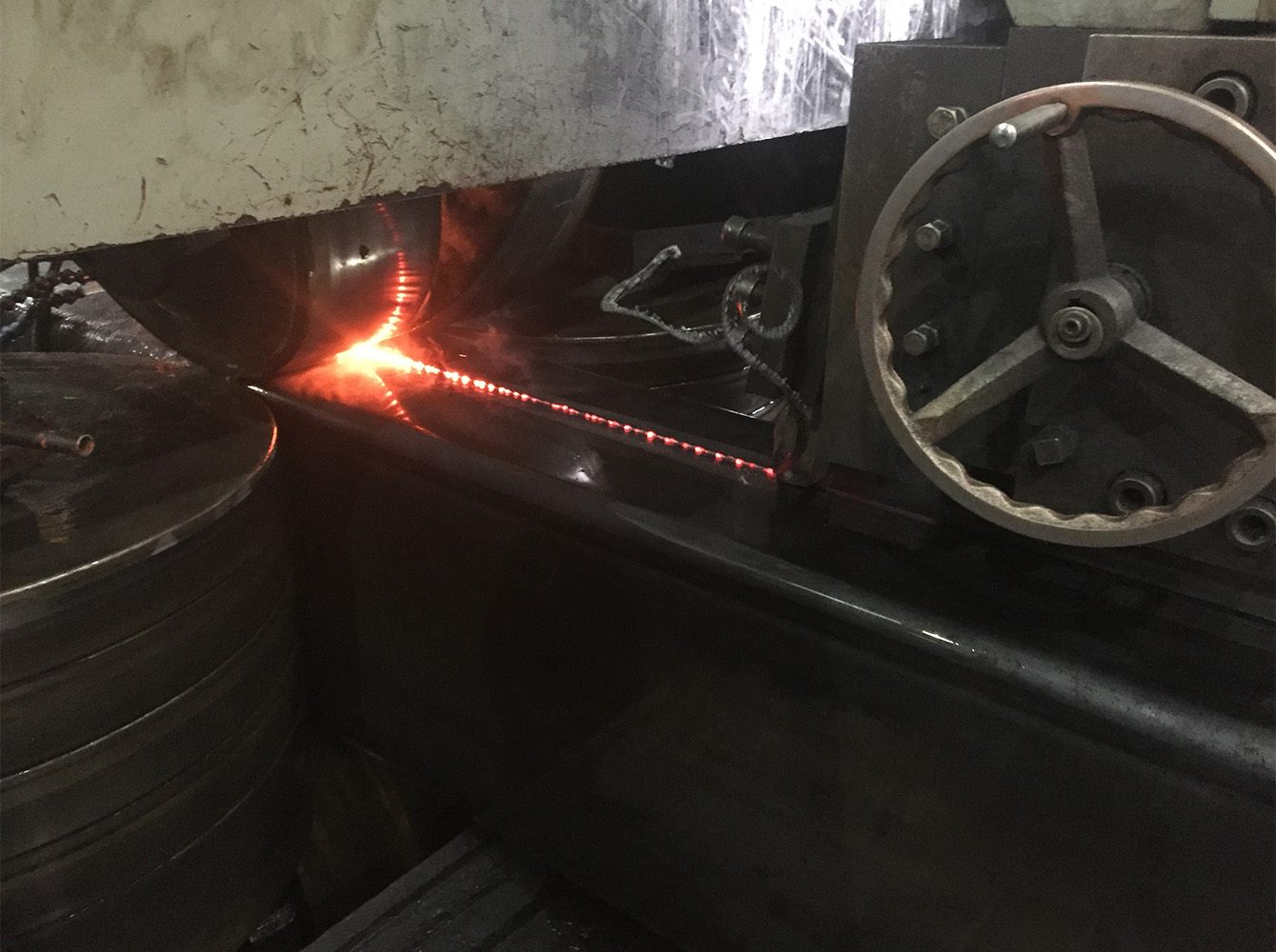

HF WELDING

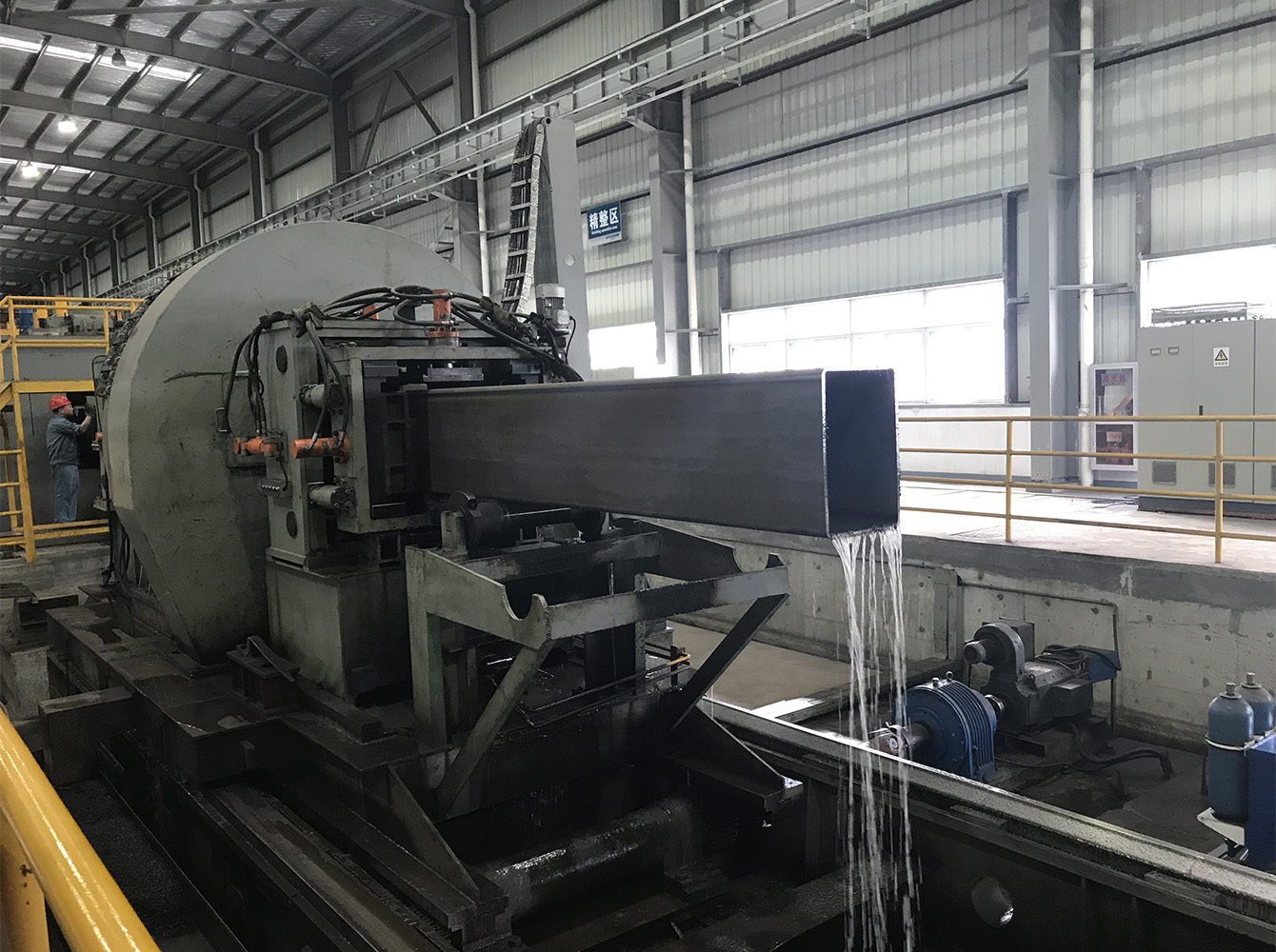

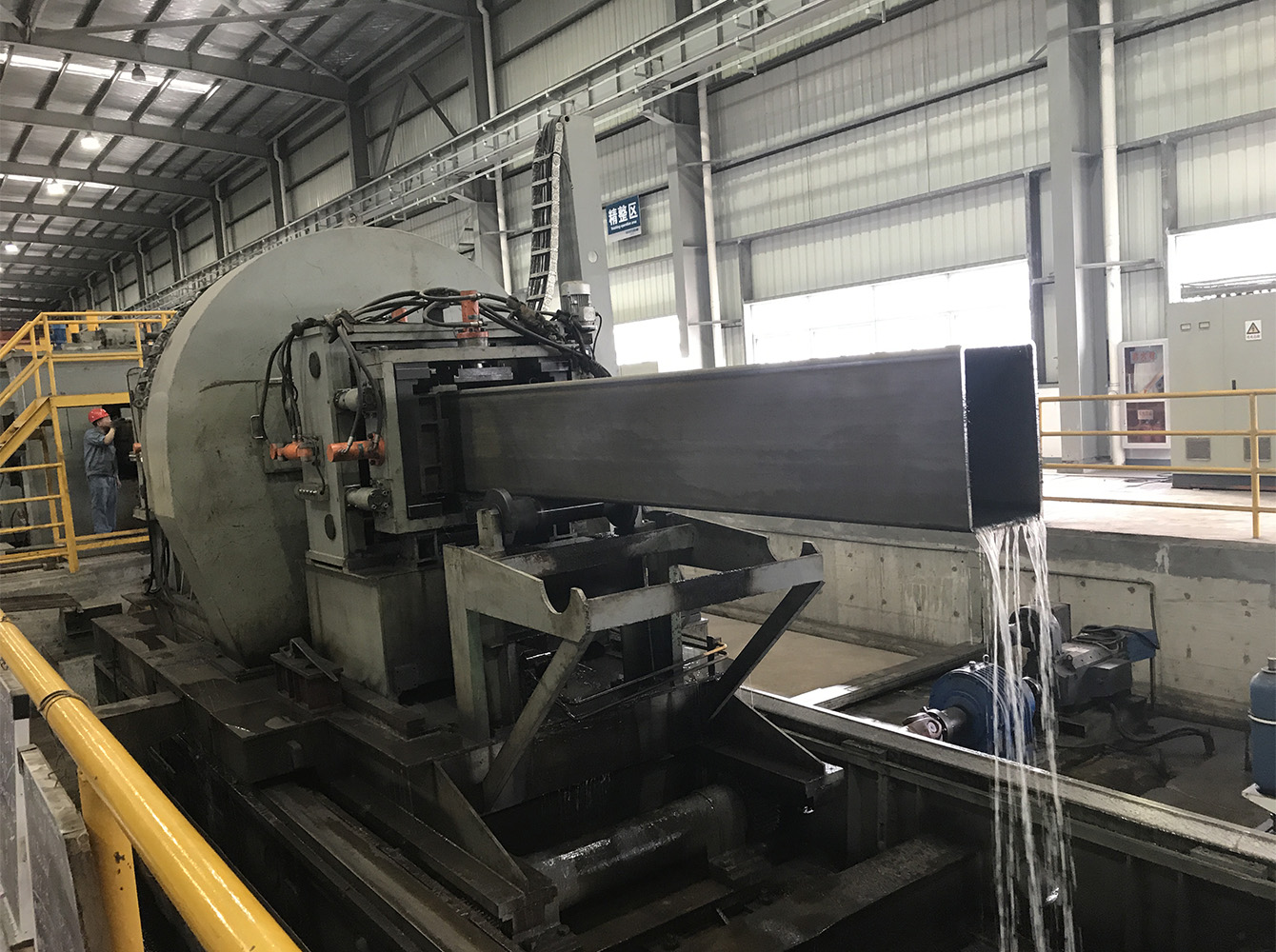

CUT OFF

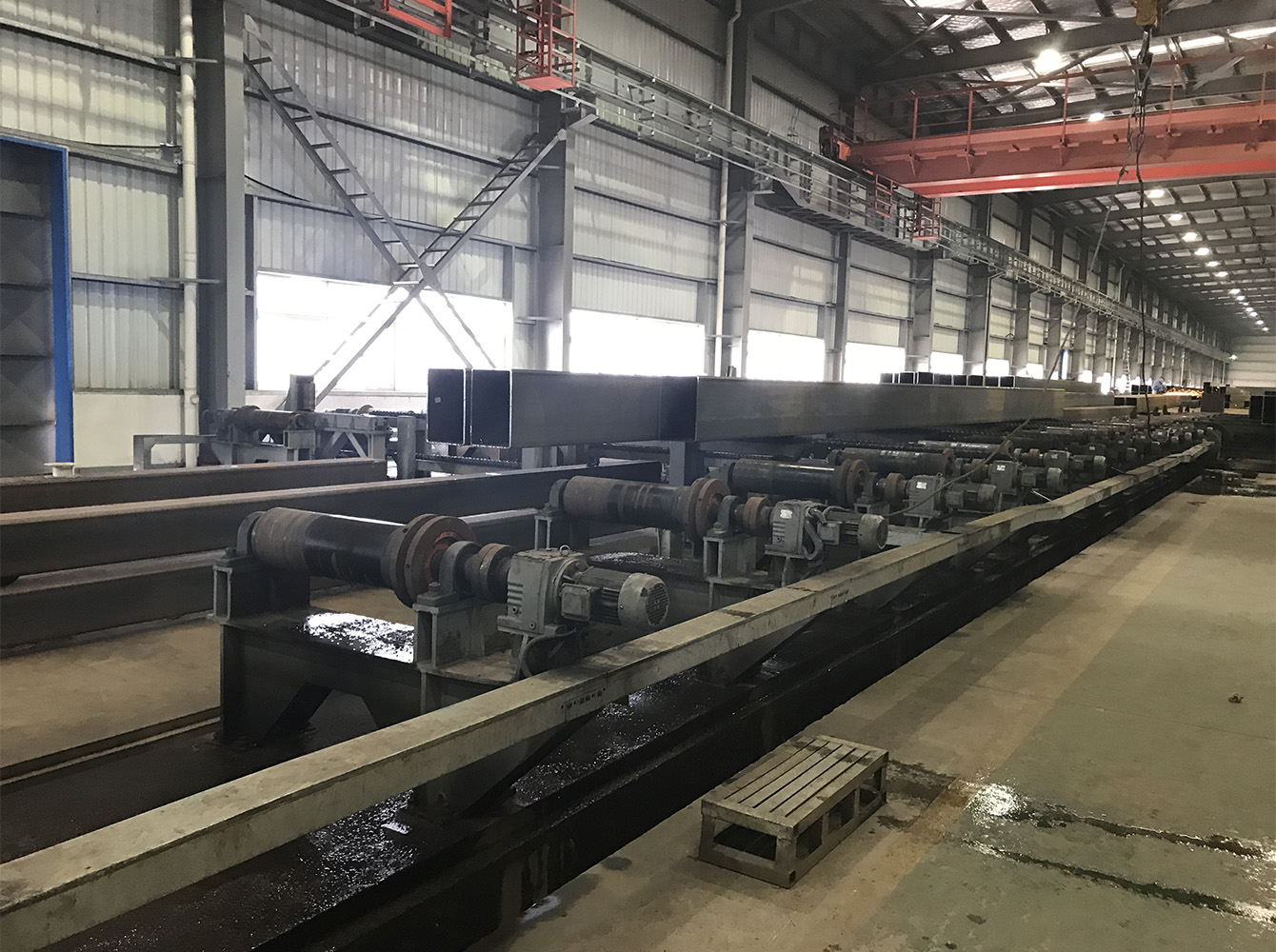

RUN OUT TABLE

VIDEO

VIDEO:

TECHNICAL DATA

TECHNICAL DATA:

Direct To Square Machine Model	Square (Rectangular) Pipe Specifications	Wall Thickness (mm)	Raw Material Of Square Pipe	Milling Speed (m/min)
LW60X60	□ 40x40-60x60 ▄30x50-40x80	1.2-3.0	Q355B	20-90
LW80X80	□40x40-80x80 ▄40x50-40x100	1.5-4.0	Q355B	20-80
LW100X100	□40x40-100x100 ▄40x50-40x120	1.5-5.0	Q355B	20-70
LW120X120	□50x50-120x120 ▄50x60-50x150	2.0-6.0	Q355B	20-60
LW150X150	□ 60x60-150x150 ▄60x80-100x200	3.0-8.0	Q355B	15-50
LW200X200	□ 80x80-200x200 ▄80x100-150x250	3.0-10.0	Q355B	10-40
LW250X250	□ 120x120-250x250 ▄120x150-200x400	4.0-12.0	Q355B	5-30
LW300X300	□120x120-300x300 ▄120x150-200x400	4.0-14.0	Q355B	5-30
LW400X400	□200x200-400x400 ▄200x250-300x500	4.0-16.0	Q355B	5-20
LW500X500	□ 250x250-500x500 ▄250x300-400x600	8.0-20.0	Q355B	5-20
