HIGH PRECISION ERW WELDED TUBE MILL LINE
HG φ48-273(25x25-200x200)
Sinoform HG series High Precision Welded Pipe&Tube Line with the latest FFX FF forming technology and adopt Germany COPRA forming software meet high efficiency output ,easily operated and stable running performance,also the complete tube mill line meet a high level automation.This high precision tube mill series with excellent design, selected high precision durable roller under strictly quenching , high performance cutting saw, complete machine body with heat treatment, accurate fabrication, precise assembly.
INTRODUCTION:
Sinoform HG series machine performance has reached the international ERW welded tube standard. This tube mill series outer diameter range can be from Φ48mm to Φ 273mm(25x25-200x200) and wall thickness of 2.0～9.0mm,Max speed up to 60m/min, Our customized machines are also can be used for different processed material ie.Mild steel tube,Black steel tube,Galvanized steel tube and meet nearly all applications.

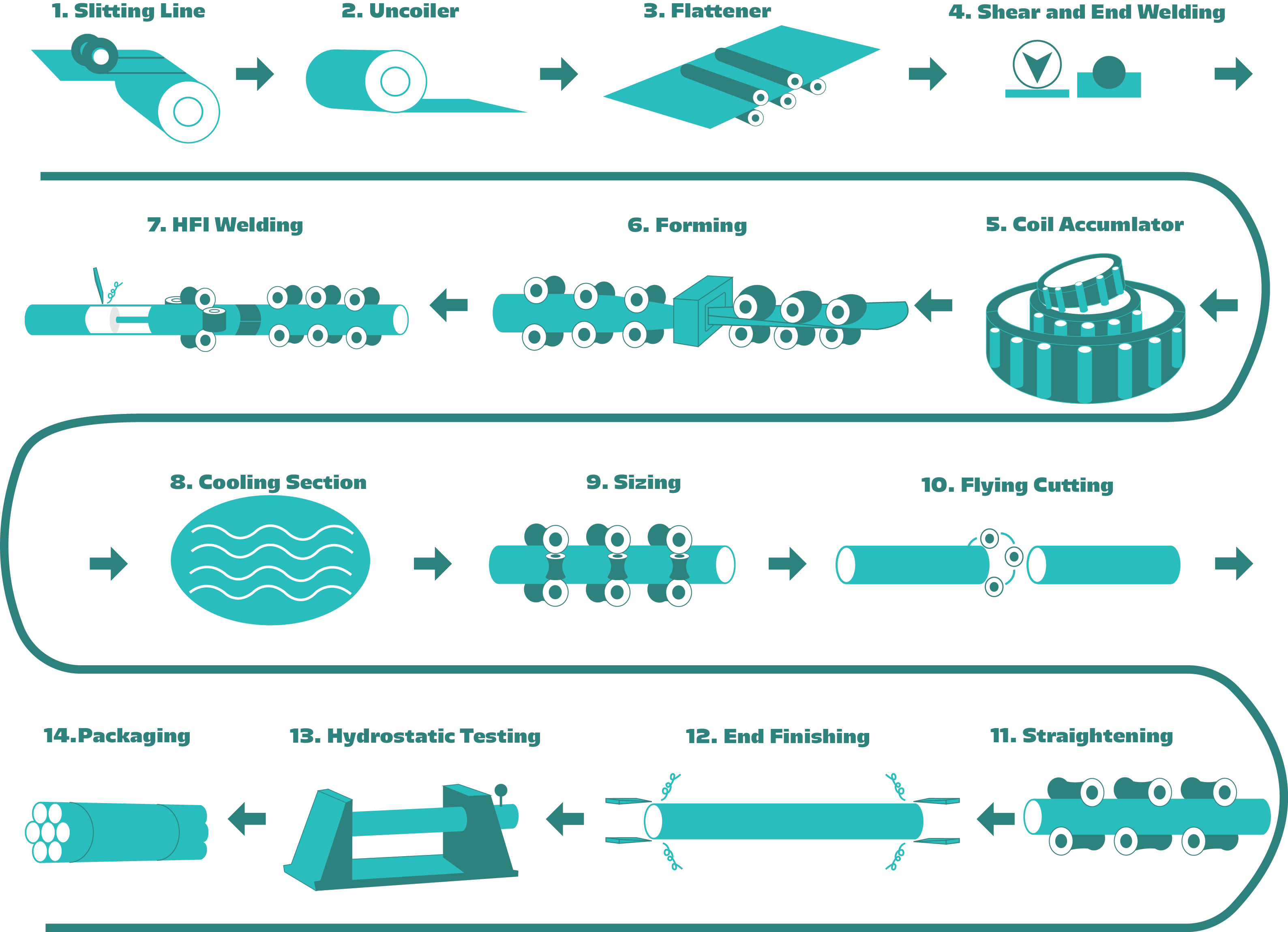

FLOW CHART OF ERW TUBE MILL

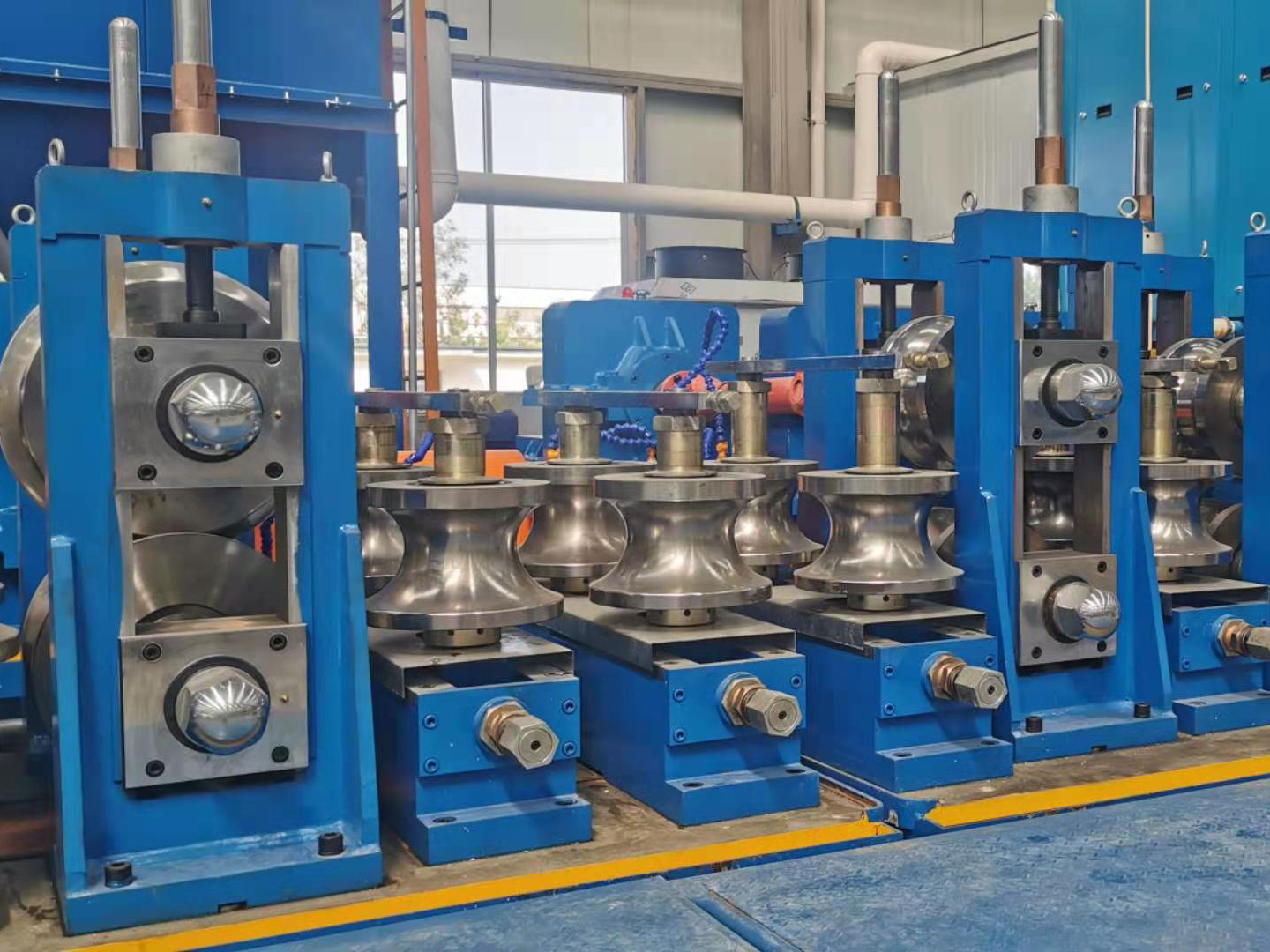

SINOFORM ROLLER QUICK-CHANGE SYSTEM
This roller quick-change system can be used to produce round and square tubes of different sizes. It only takes 30 minutes to change the size, which greatly shortens the time of traditional manual roller change.
LINE COMPONENTS:
-

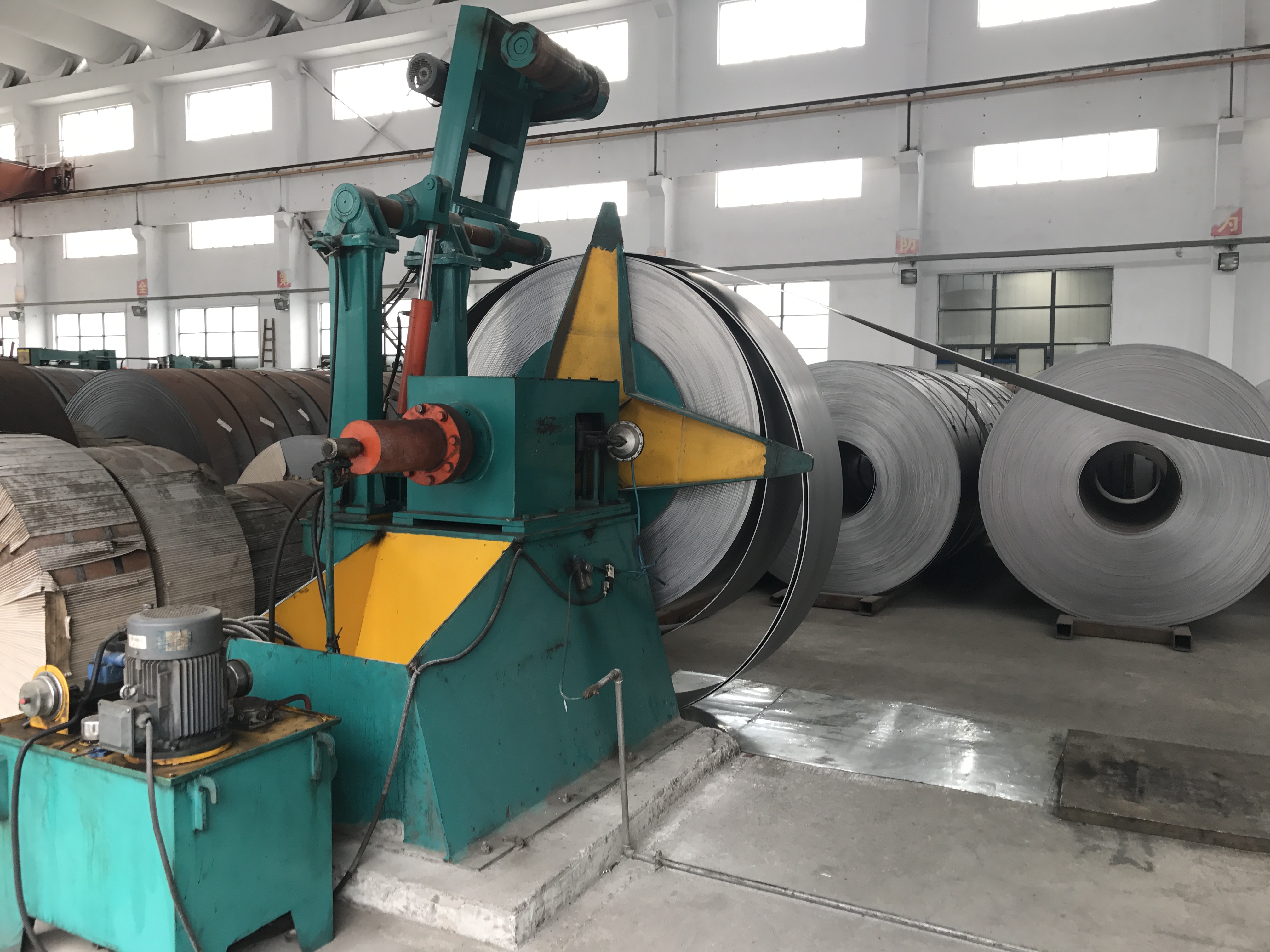

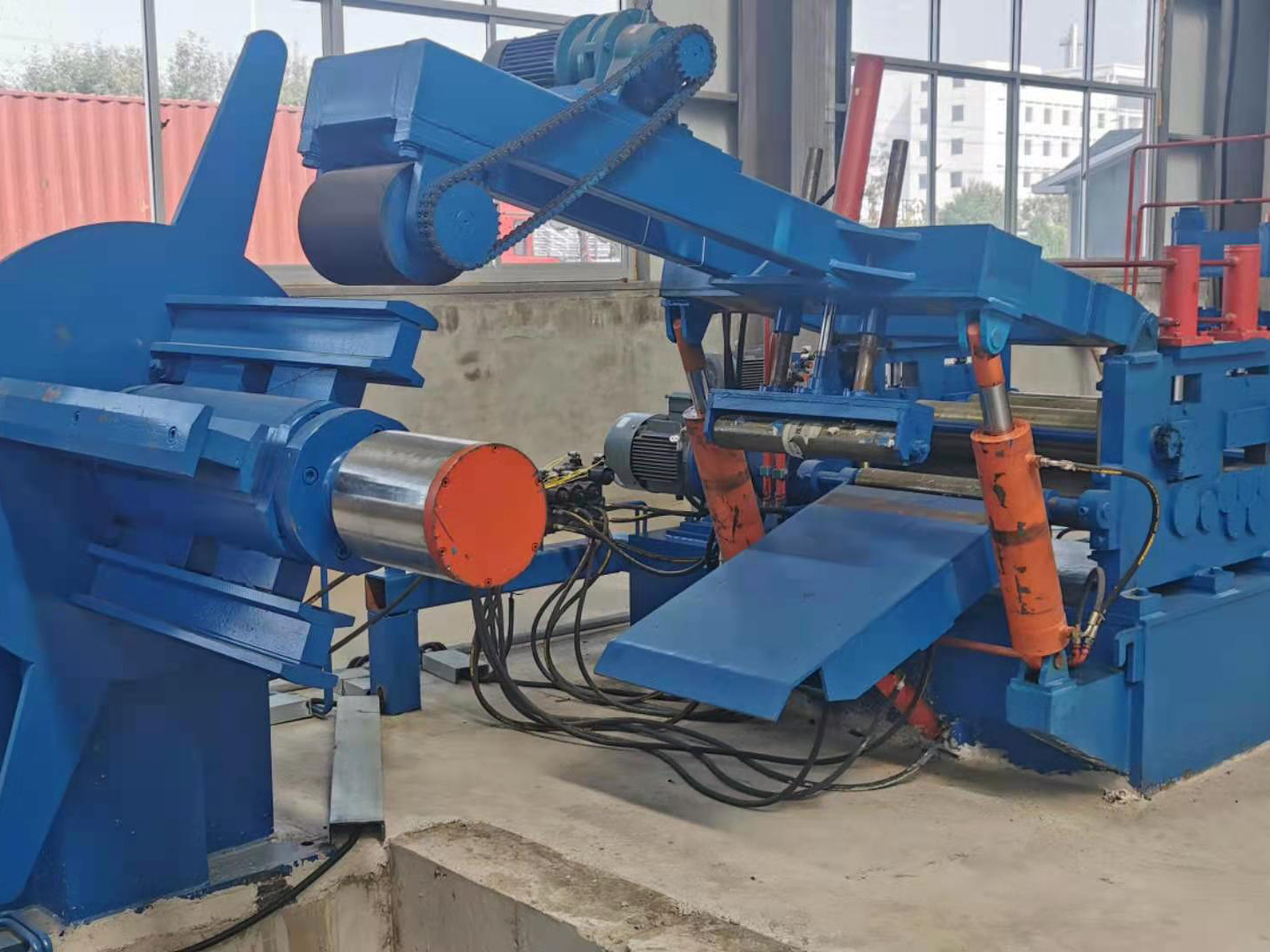

UNCOILER
-

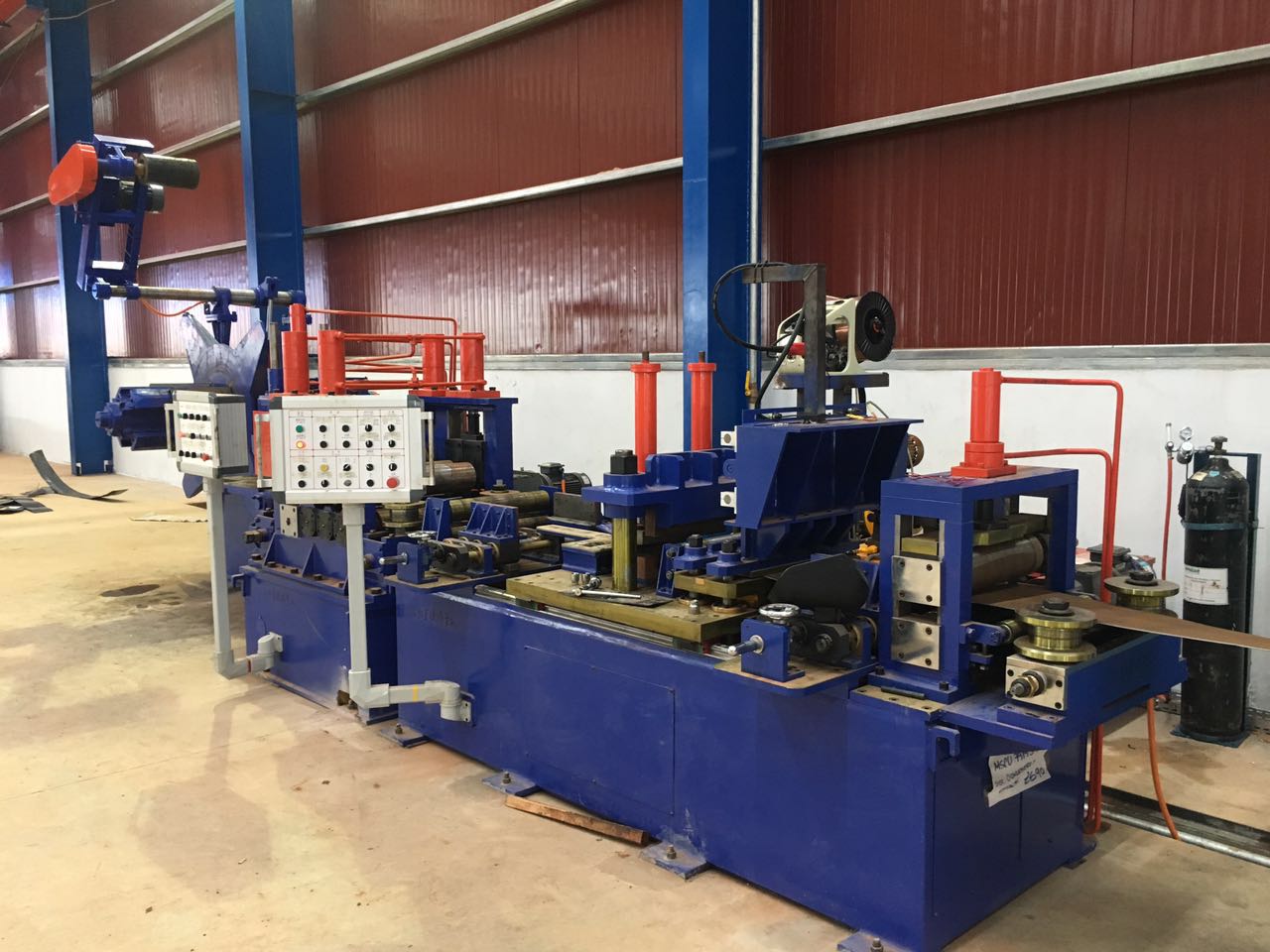

BUTT SHEAR AND WELD
-

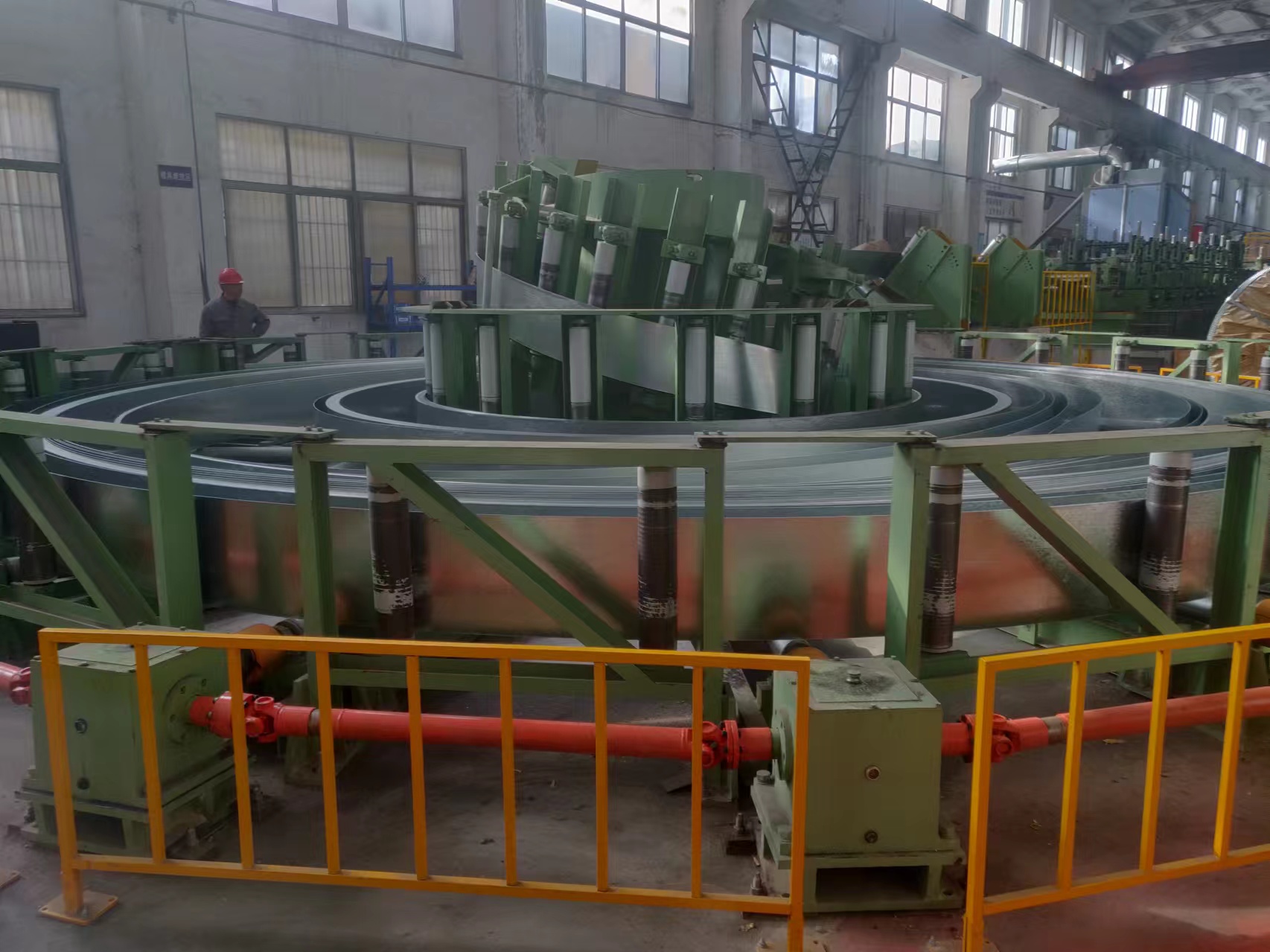

GROUND TYPE ACCUMULATOR
-

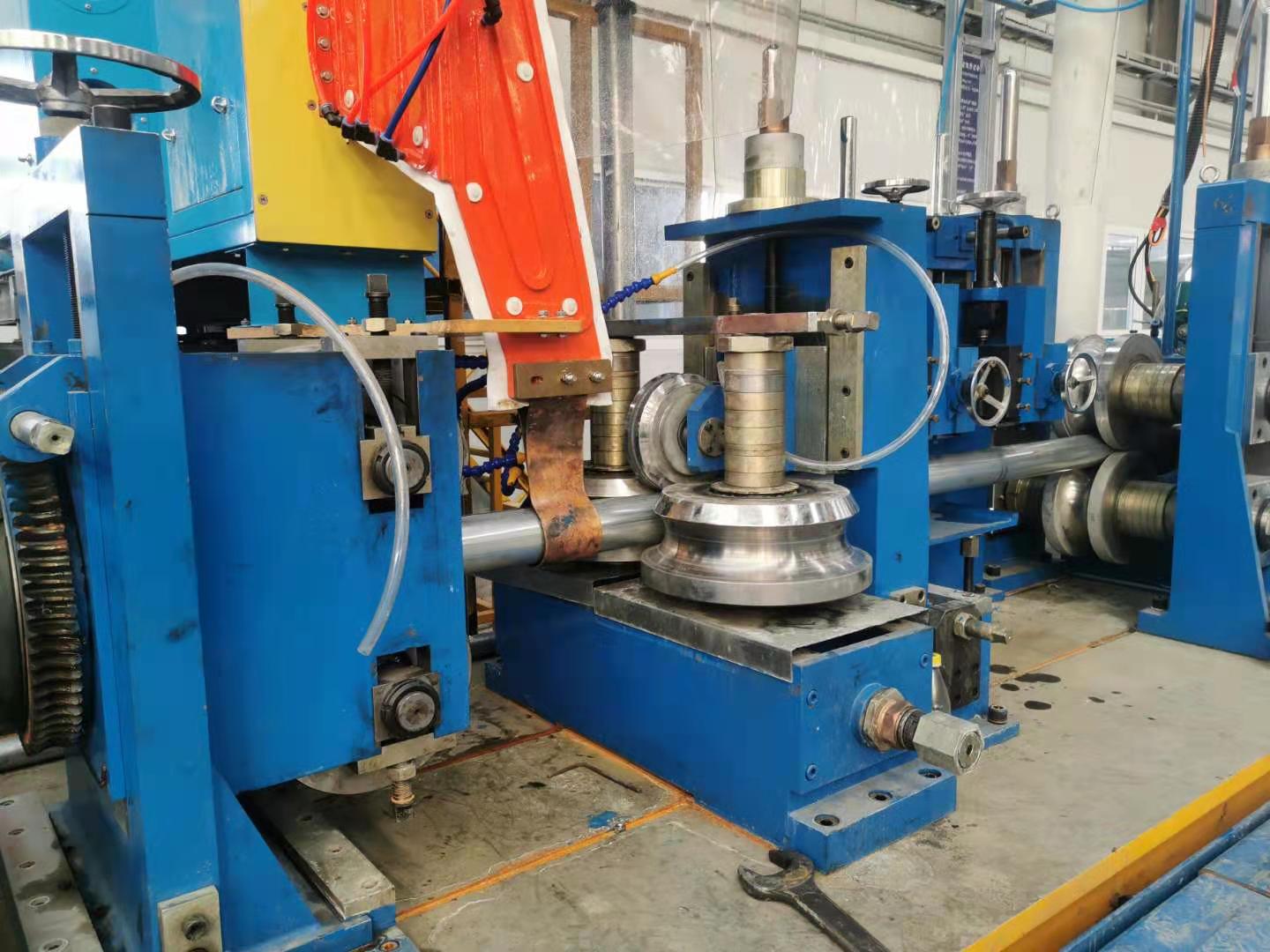

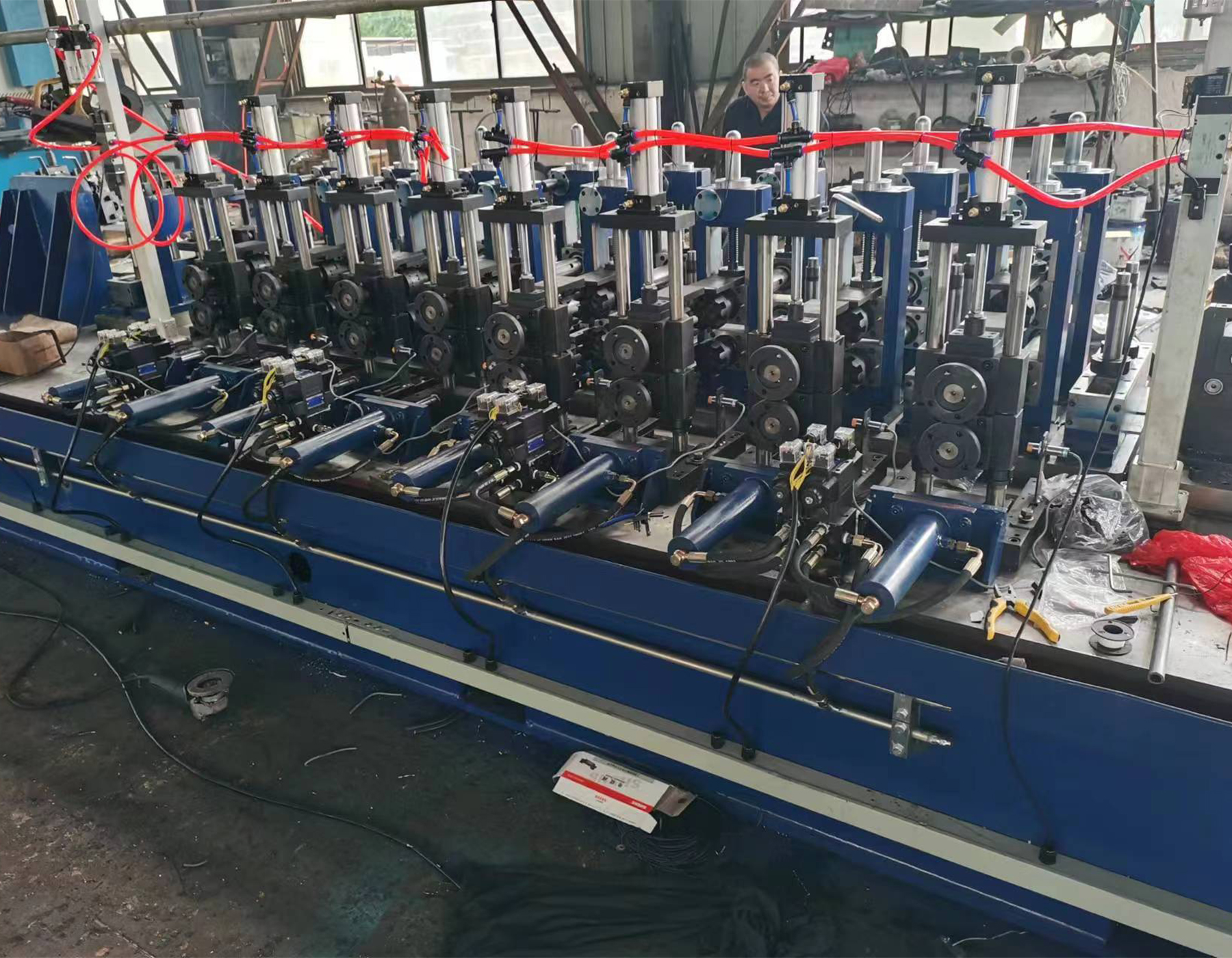

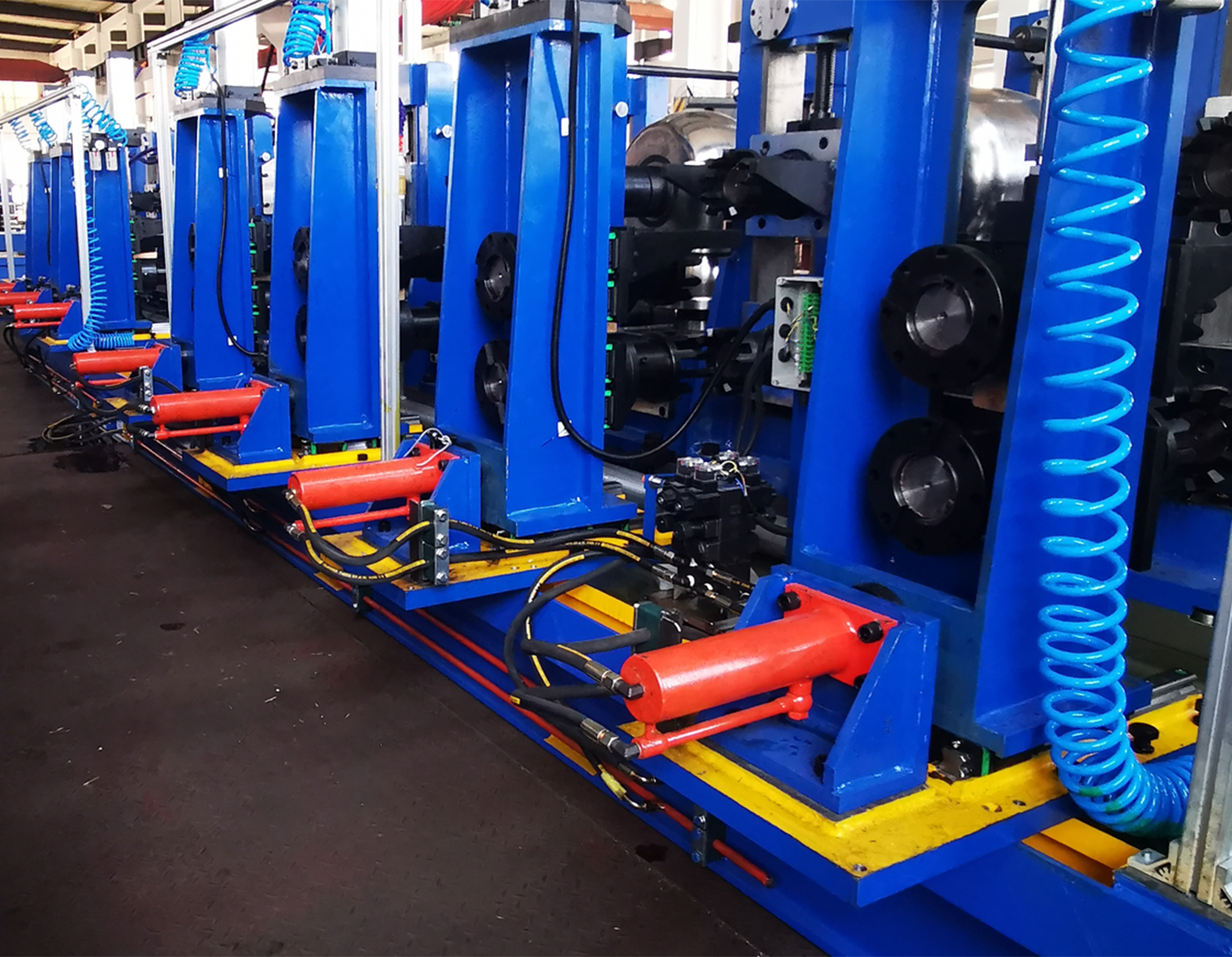

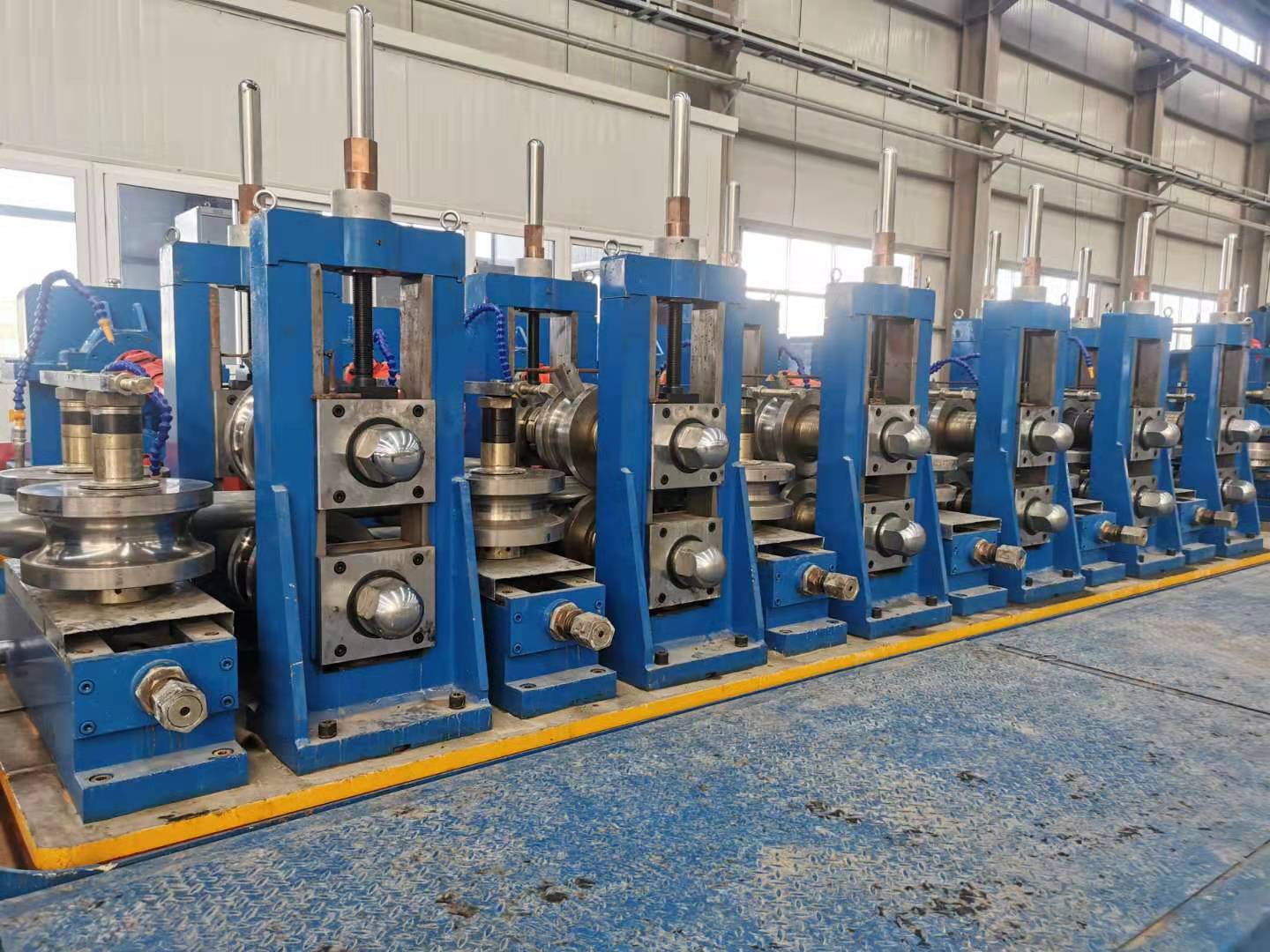

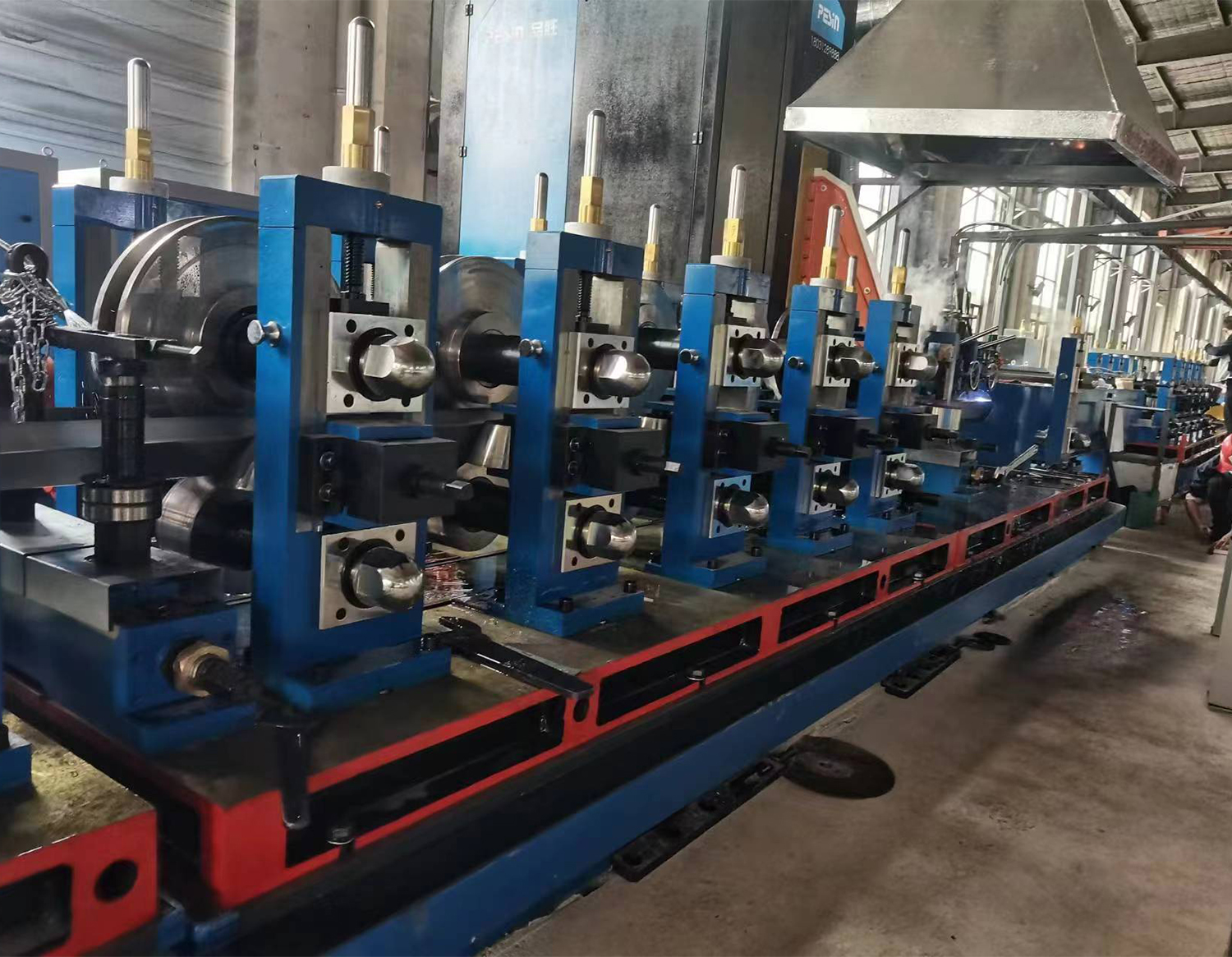

FORMING AND SIZING SECTION
-
HF WELDER
-
DOUBLE BLADE FLYING SAW
VIDEO:
TECHNICAL DATA:
| Machine Model | Production Range (mm) |
Wall Thickness Of Square Pipe | Milling Speed (m/min) |
High Frequency Power |
| HG16 | ∅8～∅25mm □6x6～20x20 | δ0.3～1.0mm □δ≤0.8mm | 20~120 | 100KW |
| HG25 | ∅8～∅32mm □6x6～25x25 | δ0.4～1.3mm □δ≤1.0mm | 20~120 | 100KW |
| HG32 | ∅13～∅50.8mm □10x10～40x40 | δ0.6～2.0mm □δ≤1.5mm | 20~120 | 150KW |
| HG50 | ∅19～∅63.5mm □15x15～50x50 | δ0.8～2.5mm □δ≤2.0mm | 20~100 | 200KW |
| HG60 | ∅19～∅76mm □15x15～60x60 | δ1.0～3.0mm □δ≤2.5mm | 20~90 | 250KW |
| HG76 | ∅25～∅90mm □20x20～70x70 | δ1.5～4.0mm □δ≤3.5mm | 20~90 | 300KW |
| HG90 | ∅30/48～∅115mm □25x25～90x90 | δ1.5～4.5mm □δ≤3.5mm | 20~60 | 300KW |
| HG115 | ∅32/48～∅127mm □25x25～100x100 | δ2.0～5.0mm □δ≤4.0mm | 15~60 | 400KW |
| HG165 | ∅76～∅165mm □60x60～130x130 | δ2.0～6.0mm □δ≤5.0mm | 15~50 | 500KW |
| HG219 | ∅114～∅219mm □90x90～170x170 | δ3.0～8.0mm □δ≤6.0mm | 15~40 | 600KW |
| HG273 | ∅114～∅273mm □90x90～200x200 | δ4.0～12.0mm □δ≤9.0mm | 10~30 | 800KW |
| HG325 | ∅165～∅325mm □130x130～250x250 | δ4.0～12.0mm □δ≤10.0mm | 10~30 | 800KW |
| HG426 | ∅165～∅426mm □130x130～300x300 | δ5.0～16.0mm □δ≤14.0mm | 10~30 | 1000KW |
| HG508 | ∅219～∅508mm □170x170～400x400 | δ6.0～16.0mm □δ≤15.0mm | 10~25 | 1000KW |
Any query please feel free to contact us
SINOFORM team will provide you complete technical solution
