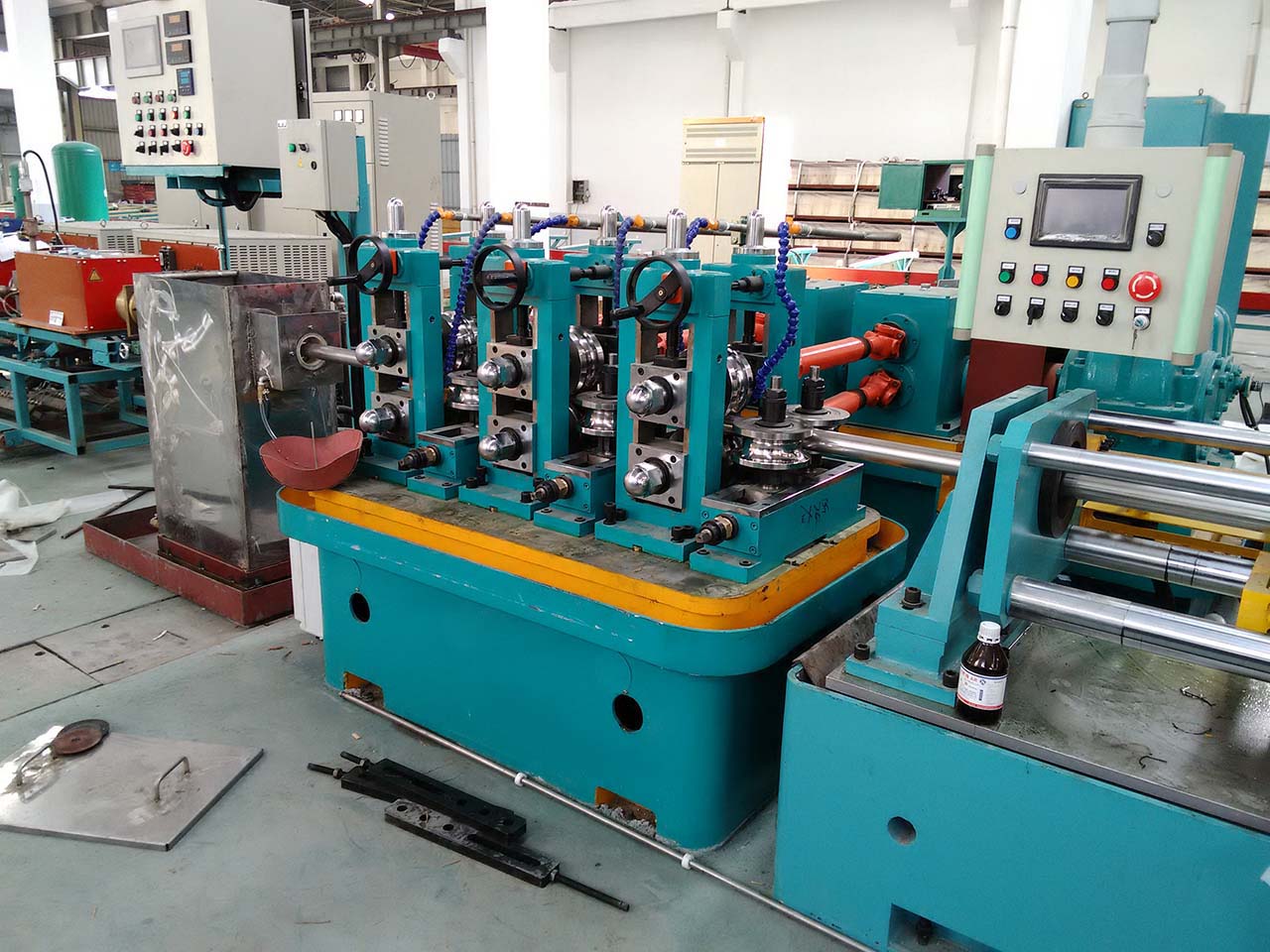

HGB STAINLESS STEEL WELDED TUBE MILL LINE
SINOFORM HGB series series stainless steel Welded Pipe&Tube Line with the latest TIG and Laser welding technology and adopt Germany COPRA forming software meet high efficiency output ,easily operated and stable running performance,also the complete tube mill line meet a high level automation.
INTRODUCTION:
SINOFORM HGB series series stainless steel Welded Pipe&Tube Line with the latest TIG and Laser welding technology
The machine performance has reached the international welded tube standard. This tube mill series outer diameter range can be from Φ12.7mm to Φ 325mm and wall thickness of 1.0～10.0mm,all these size tubes are produced with large output, best quality and high precision.Our customized machines are also can be used for stainless material and meet nearly all applications.

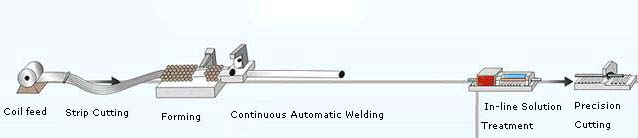

FLOW CHART OF STAINLESS STEEL WELDED PIPE&TUBE LINE
LINE COMPONENTS:
-

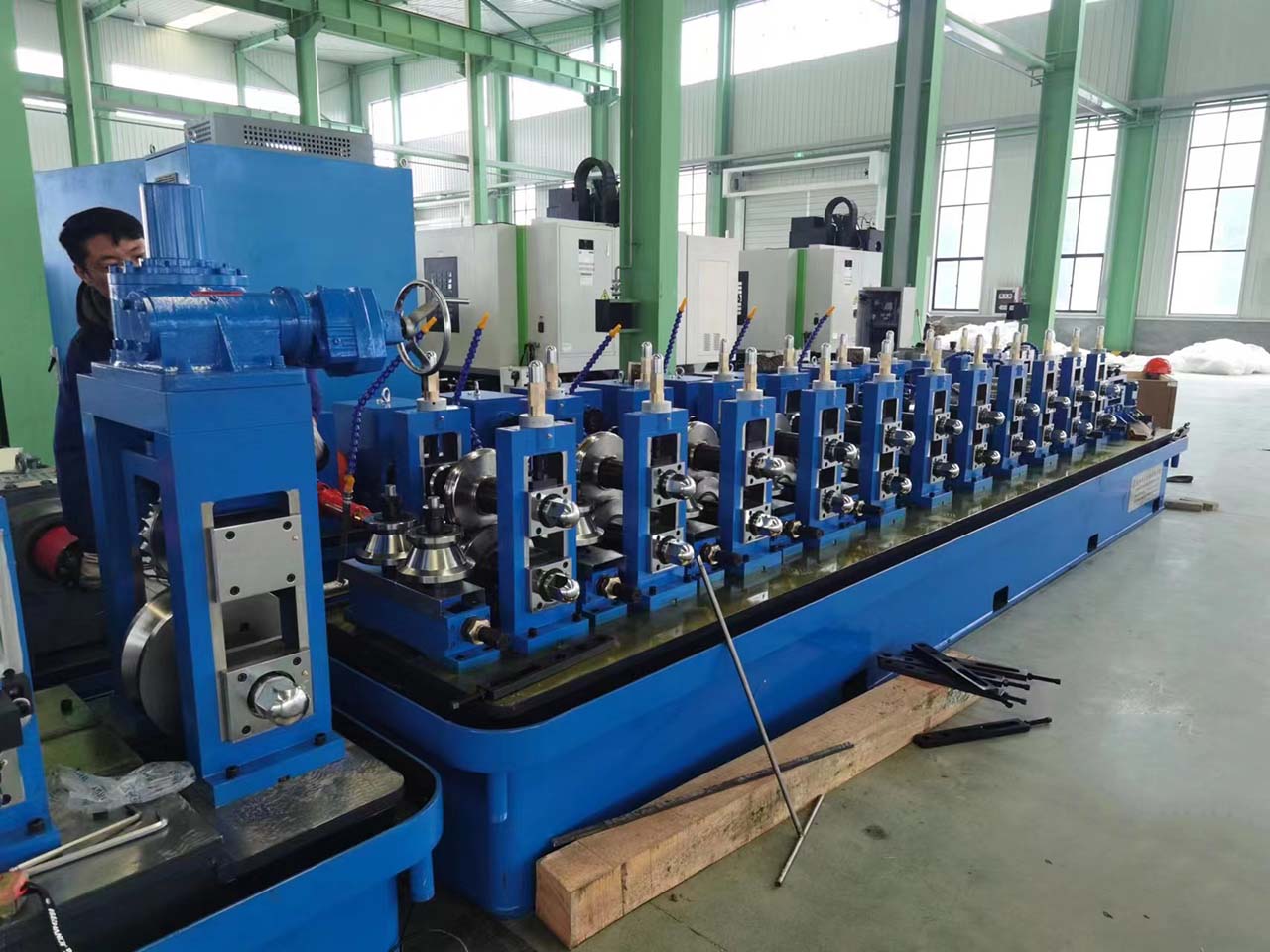

FORMING
-
SIZING
-

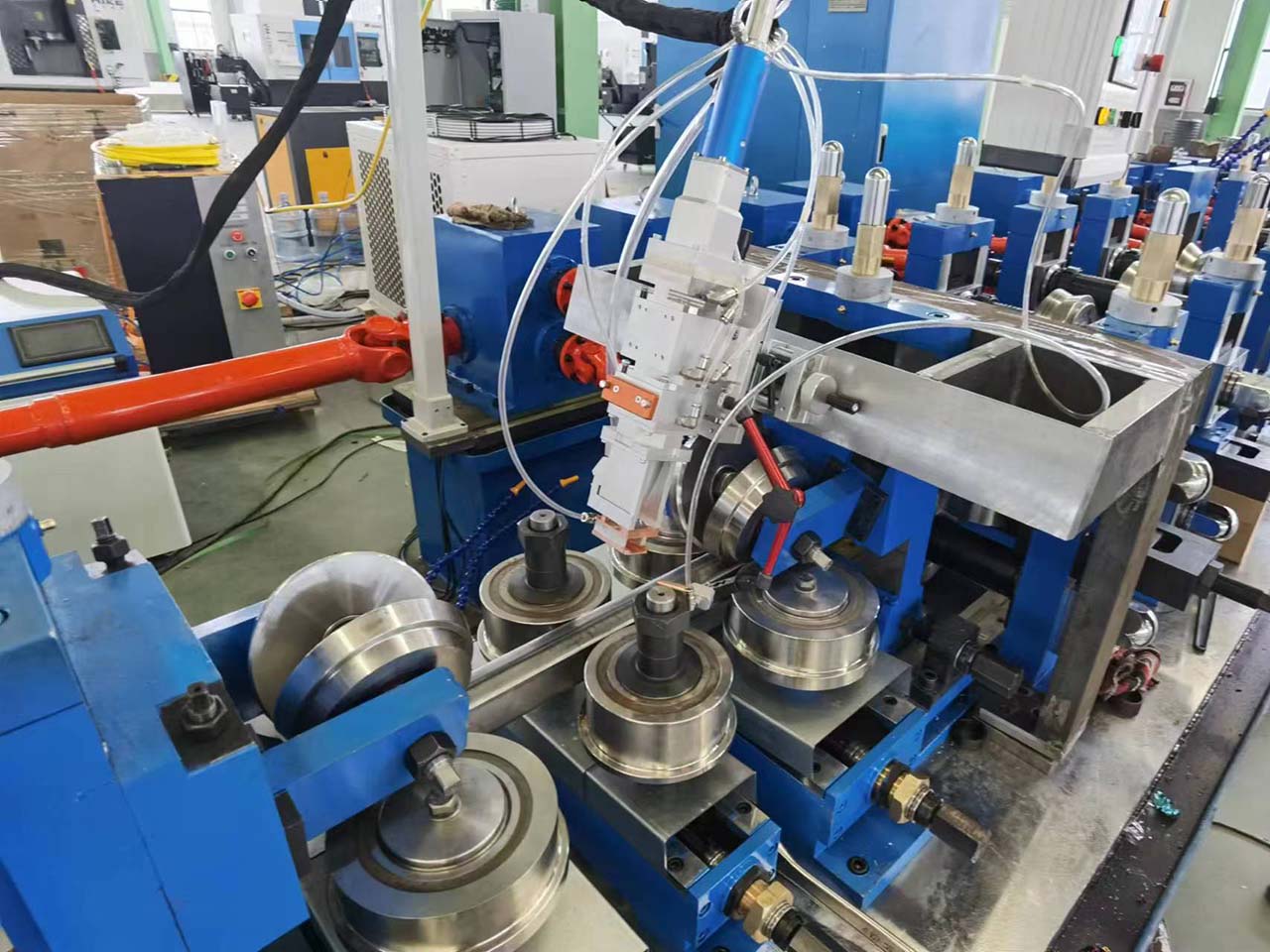

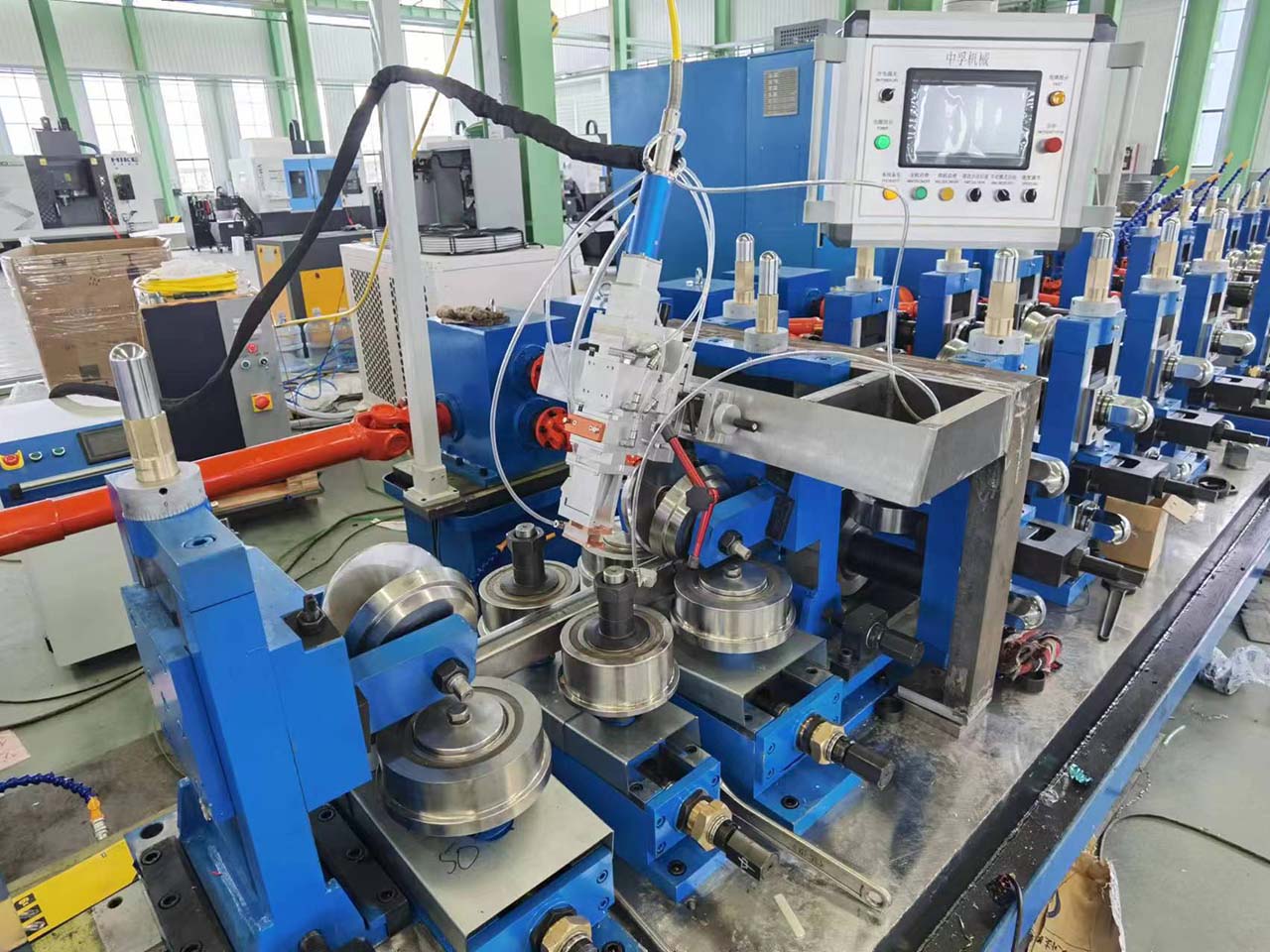

LASER WELDING
-

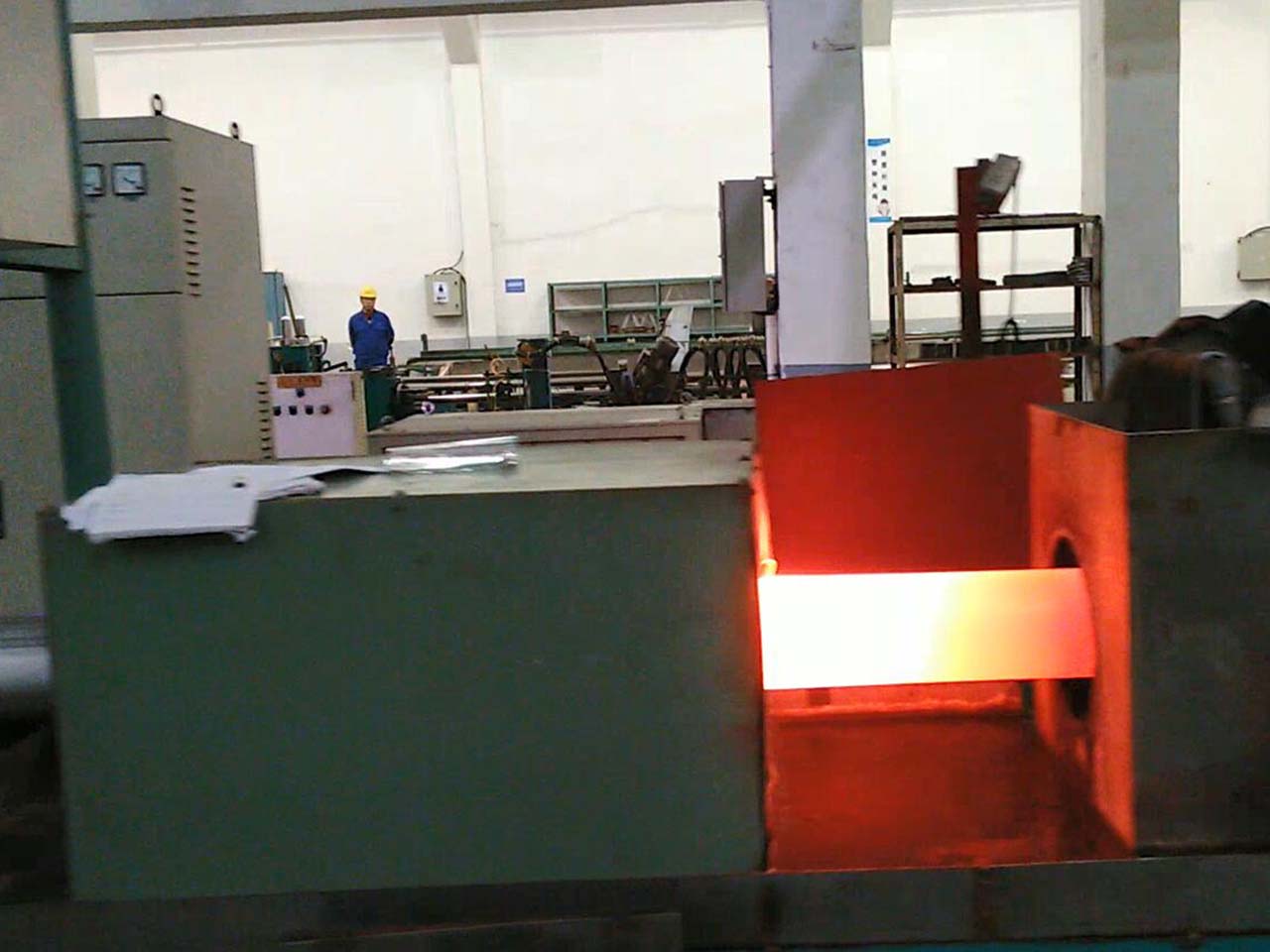

HEAT TREATMENT
-

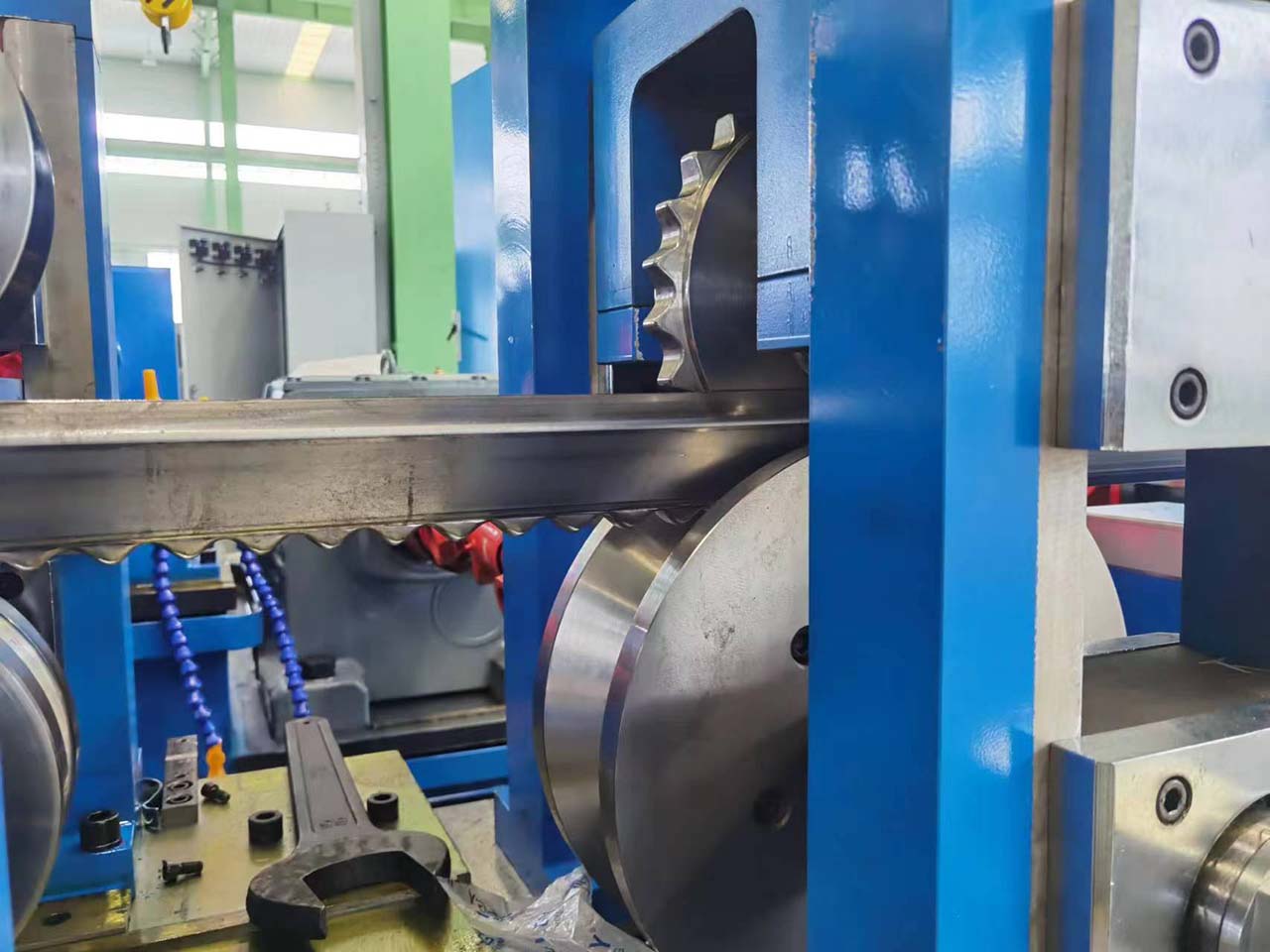

WELDING SEAM POLISH
-

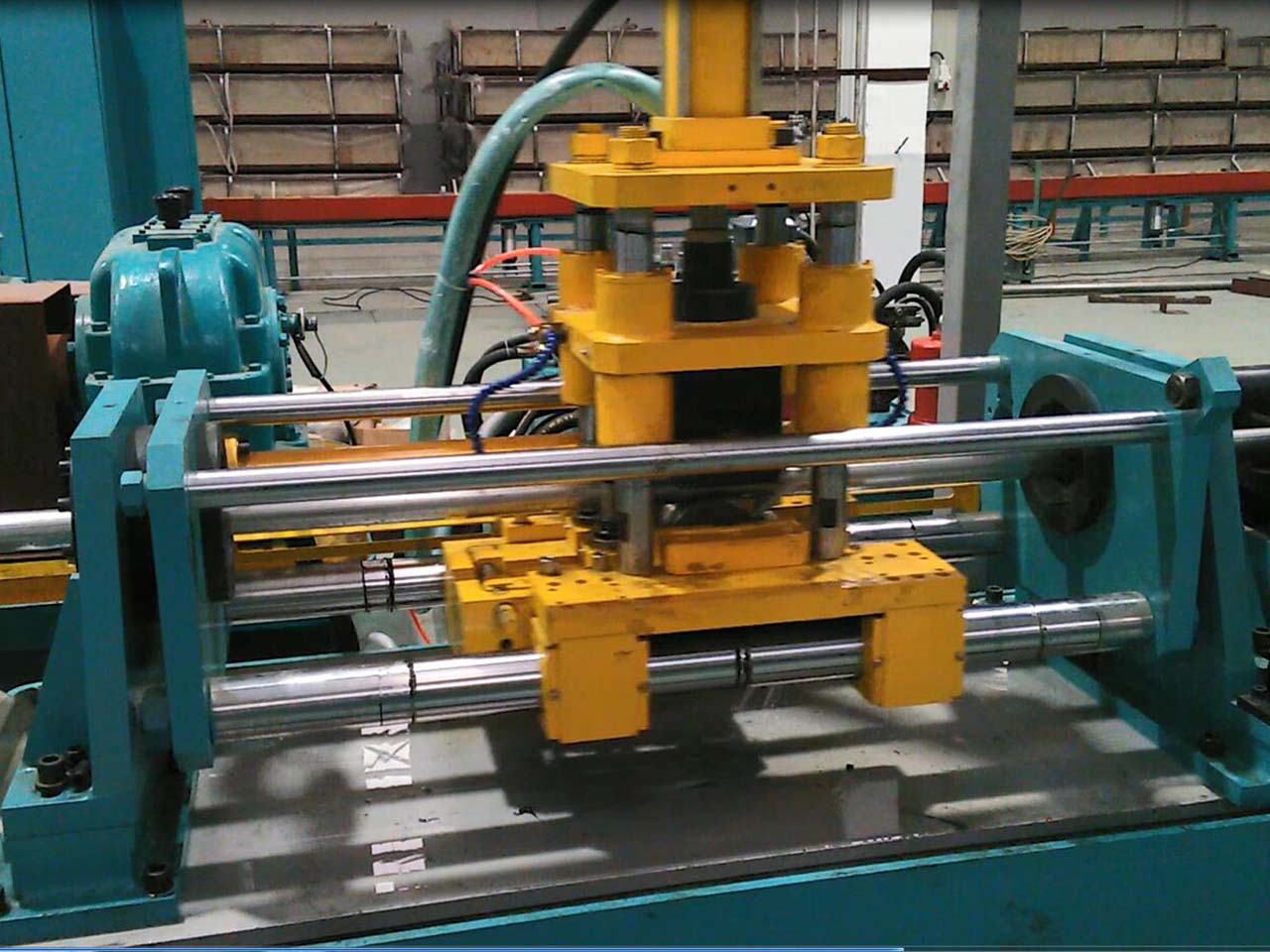

CUT OFF
VIDEO:
TECHNICAL DATA:
|
Specification of TBG Stainless Steel Welded Tube Mill |
|||||
|
Model |
Min O.D.(mm) |
Max O.D.(mm) |
Min Thickness(mm) |
Max Thickness(mm) |
Speed(m/min) |
|
HGB-32 |
12.7 |
33.4 |
1 |
3 |
|
|
HGB-50 |
22 |
60.3 |
1 |
3.5 |
|
|
HGB-76 |
25.4 |
89 |
0.8 |
4 |
0.5-6 |
|
HGB-102 |
76 |
168 |
1.5 |
6 |
0.5-3 |
|
HGB-219 |
89 |
219 |
2 |
8 |
0.5-2 |
|
HGB-325 |
114 |
325 |
2.5 |
10 |
0.5-1.8 |
Any query please feel free to contact us
SINOFORM team will provide you complete technical solution
