DOUBLE BLADE MILLING TYPE FLYING SAW INTRODUCTION

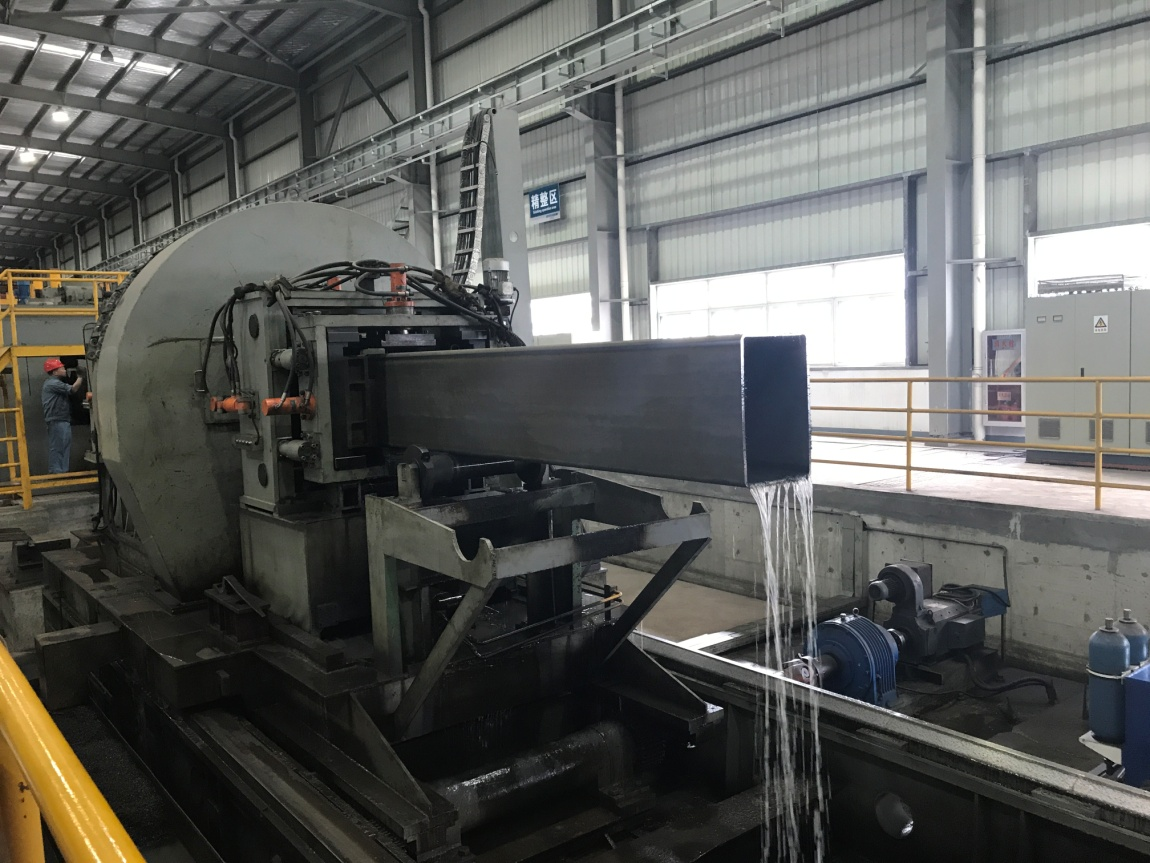

The milling type flying saw is used on the welded pipe tube mill line for continuously cutting big-size round pipes square and rectangular pipes into specific length when the production line running.
The pipe is length cut by 4/2 milling disk cutting head.We use 4/2 milling heads to finish cutting along with outer contour line.We adopt two blades for cutting 219 pipe(The diameter of round pipe,the diagonal of square and rectangular pipes).
The numerical control system calculates trolley’s start-up point,acceleration curves,deceleration curve,maximum return speed and also displays the running curves of the trolley to ensure the system running at a good state.The position and speed of the trolley are measured by a incremental encoder which is installed on the trolley’s drive motor.Along with the rotation of drive motor,the measuring value is sent to numerical control system to precisely control the cutting position from drive to pipe.During the cutting process,the velocity fluctuation of pipe has no effect to the control precision.The copying cuting contour line can be set up on touch screen which has round,square and rectangle three interface figure.The intuitionist and easy operation make the complicated cutting curve be set up by simply figure parameters.
Any query please feel free to contact us
SINOFORM team will provide you complete technical solution
